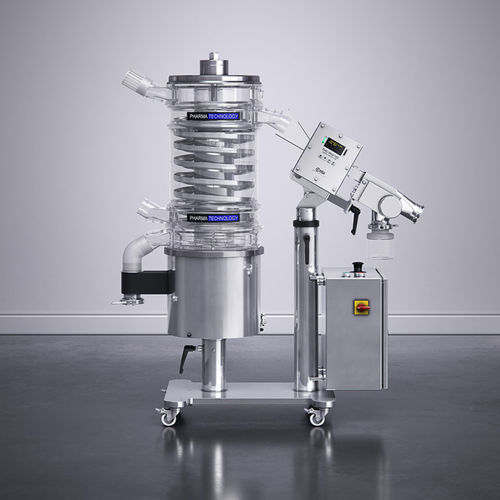

Dry cleaning machine eTec

automaticprocessfor the pharmaceutical industry

Short description
This model is the entry-level unit in the range of dedusters with metal check. The system has an open design without containment features and is available in two elevation heights. The 316L stainless steel segmented spiral is suitable for microtabs and effervescent tablets.

Robust and transparent design
The eTec tablet deduster features a segmented 316L stainless steel spiral for long service life. A fully transparent cover provides continuous visibility of tablets during processing, while a simplified tool-free construction enables fast assembly, cleaning and maintenance.

High-efficiency dedusting
Enlarged circumferential dust extraction channels combined with central air jets quickly remove excess powder from tablets. This layout ensures fast conveying and consistent high-quality dedusting with minimal downtime.

Key benefits

• Consistent high-performance dedusting with 100% self-emptying
• Integrated CEIA, LOCK or SAFELINE metal detector
• Lightweight & modular 316L stainless steel segments
• Available in two elevation height options
• Quiet operation <70 dB(A)
• cGMP design, easy to handle & wash

Technical specifications

• Model / Trade name: eTec
• Product type: Tablet
• Function: Dedusting, Metal detection
• Product Range: eRange
• Elevation height: 250, 500
• Available Metal Detector: Lock Insight, Ceia THS/PH21 EE
• Outlet Chute: TC ASME BPE 2,5", TC ISO 1127 DN50
• Head Opening: 100 mm x 40 mm (CE), 98 mm x 35 mm (LI)
• Minimum Product Size: Ø 4 mm
• Maximum Product Size: Ø 25 mm
• Accuracy Stainless Steel: 0,50 mm
• Accuracy Ferro: 0,30 mm
• Accuracy Non-Ferro: 0,35 mm
• Conveying Adjustment: Vibration Intensity
• Self Emptying: Yes
• Requested Air Extraction: Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa
• Dust Extraction Connection: TC ISO 1127 DN50
• Requested Compressed Air: 40 - 80 l/min - Min. 4,5 bar
• Compressed Air connection: Ø 6 mm
• Power Supply: 110 V to 230 V ± 10 %
• Frequency: 50 Hz / 60 Hz
• Noise Level: <70 dB (A)
• Operating Temperature: 15 - 25 °C
• Maximum Relative Humidity: 60%
• Containment Level: Open design
• Inlet Chute: Flex Connect © (Ø56,3 mm)
• Non-Metallic Contact Parts: Tritan MX 711 - POM C - Silicone
• Metal Contact Parts: Stainless Steel 316L
• Contact Parts Finishing: Ra ≤ 0,8 µm
• Frame Parts: Stainless Steel 304
• Frame Finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ Protocol: Available
• Material Certificates: Available
• Packaging: Wooden Box
• Net weight: 170 kg
• Floor Dimensions: 480 mm x 755 mm
• Inlet Height: 735 mm
• Available elevation height options (examples): 250, 500 (other heights are offered in product configurator)
