Dry cleaning machine NutraFlex

automaticprocessfor the food industry

Overview
Designed for efficiency and usability, the NutraFlex is a straightforward solution for tablet dedusting. It can be combined with a metal detector and a drum loading system.

Key benefits

• Constant dedusting with full self-emptying
• Option for CEIA metal detector integration
• Transparent, modular polymer (Tritan) segmented spiral for full visual inspection
• Quiet operation <69 dB(A)
• cGMP-oriented design, easy to handle and to wash

Description

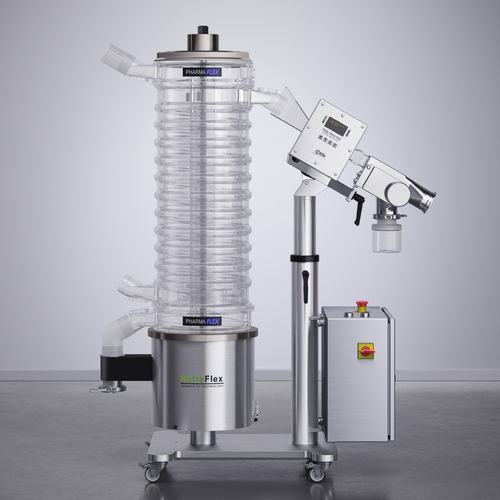

The NutraFlex is a tablet deduster developed to meet nutraceutical production requirements, combining pharmaceutical-grade concepts with cost-effective design for nutraceutical lines. The unit features a segmented transparent spiral made of Tritan copolyester, enabling 360° visual control of the tablet flow. Dedusting is achieved by enlarged circumferential extraction channels combined with central air jets directed at the tablets, ensuring efficient dust removal while maintaining high throughput. The machine is tool-free for handling and maintenance.

Technical specifications

• Product Range: NutraRange
• Product type: Tablet
• Function: Dedusting, Metal detection
• Application Area: Manufacturing
• Inlet Chute: Flex Connect © (Ø56,3 mm)
• Available Metal Detector: Ceia THS/PH21 EE
• Outlet Chute: TC ASME BPE 2,5"
• Head Opening: 100 mm x 40 mm (CE)
• Accuracy Stainless Steel: 0,50 mm
• Accuracy Ferro: 0,30 mm
• Accuracy Non-Ferro: 0,35 mm
• Minimum Product Size: Ø 4 mm
• Maximum Product Size: Ø 25 mm
• Conveying Adjustment: Vibration Intensity
• Self Emptying: Yes
• Requested Air Extraction: Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa
• Dust Extraction Connection: TC ISO 1127 DN50
• Requested Compressed Air: 40 - 80 l/min - Min. 4,5 bar
• Compressed Air connection: Ø 6 mm
• Noise Level: <68 dB (A)
• Power Supply: 110 V to 230 V ± 10 %
• Frequency: 50 Hz / 60 Hz
• Non-Metallic Contact Parts: Tritan MX 711 - POM C - Silicone
• Metal Contact Parts: Stainless Steel 316L
• Contact Parts Finishing: Ra ≤ 0,8 µm
• Frame Parts: Stainless Steel 304
• Frame Finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ Protocol: Available
• Material Certificates: Available
• Packaging: Wooden Box
• Netto weight: 195 kg
• Floor Dimensions: 480 mm x 755 mm
• Inlet Height: 460 mm
• Elevation height: 250 or 500 (selectable)
