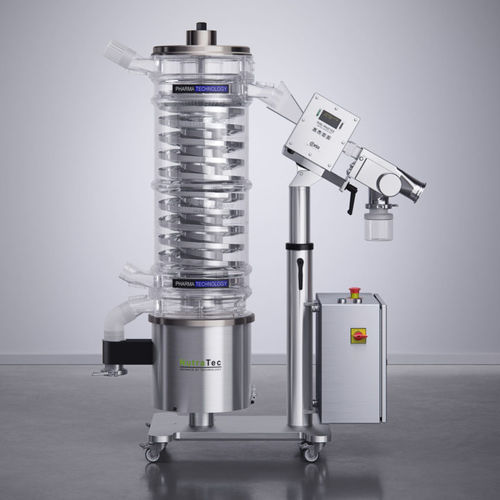

Dry cleaning machine NutraTec

automaticprocessfor the food industry

Product overview
Designed for efficiency and usability, the NutraTec is a straightforward solution for tablet dedusting. It can be combined with a metal detector and a drum loading system. The stainless steel segments are ideal for microtabs and effervescent tablets.

Key benefits

• Constant high-performing dedusting with 100% emptying
• Optional CEIA metal detector
• Lightweight & modular 316L stainless steel segments
• Quiet operation <70 dB(A)
• cGMP design, easy to handle & wash

Design & functionality
The segmented 316L stainless steel spiral and fully transparent cover provide durable construction and direct visibility of the tablet process. Simplified tool-free construction allows fast and easy cleaning and maintenance. Enlarged circumferential dust extraction channels paired with central air jets remove excess powder efficiently while maintaining high throughput.

Technical specifications

• Packaging: Wooden Box
• Netto weight: 170 kg
• Floor Dimensions: 480 mm x 755 mm
• Inlet Height: 597 mm
• Elevation height: 500
• Available Metal Detector: Ceia THS/PH21 EE
• Outlet Chute: TC ASME BPE 2,5"
• Head Opening: 100 mm x 40 mm (CE)
• Accuracy Stainless Steel: 0,50 mm
• Accuracy Ferro: 0,30 mm
• Accuracy Non-Ferro: 0,35 mm
• Minimum Product Size: Ø 4 mm
• Maximum Product Size: Ø 25 mm
• Conveying Adjustment: Vibration Intensity
• Self Emptying: Yes
• Requested Air Extraction: Adjustable 150 - 200 m3/h - pressure drop 150 - 500 Pa
• Dust Extraction Connection: TC ISO 1127 DN50
• Requested Compressed Air: 40 - 80 l/min - Min. 4,5 bar
• Compressed Air connection: Ø 6 mm
• Power Supply: 110 V to 230 V ± 10 %
• Frequency: 50 Hz / 60 Hz
• Noise Level: <70 dB (A)
• Operating Temperature: 15 - 25 °C
• Maximum Relative Humidity: 60%
• Containment Level: Open design
• Inlet Chute: Flex Connect © (Ø56,3 mm)
• Non-Metallic Contact Parts: Tritan MX 711 - POM C - Silicone
• Metal Contact Parts: Stainless Steel 316L
• Contact Parts Finishing: Ra ≤ 0,8 µm
• Frame Parts: Stainless Steel 304
• Frame Finishing: Brushed 320
• Frame mounted on wheels: Yes
• IQ-OQ Protocol: Available
• Material Certificates: Available
• Function: Dedusting, Metal detection
• Product type: Tablet
• Application Area: Manufacturing
• Product Range: NutraRange
