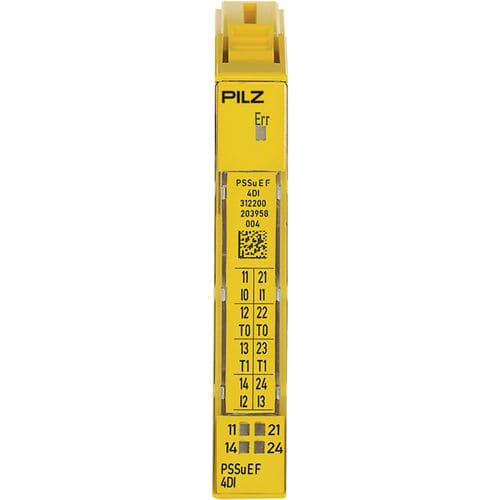

Digital I/O module PSSu E F 4DI
voltage4-I

digital I/O module
digital I/O module
Add to favorites
Compare this product


Characteristics

Signal type
digital
Applications
voltage
Number of inputs/outputs
4-I

Description

PSSu, electronic module, failsafe, digital inputs and outputs, 4 inputs, 2 test pulse outputs 0.25 A. General data Approval - CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV Application range - Fail-safe Technical data Inputs Number of digital inputs - 4 DC voltage at input - 24 V DC Potential isolation inputs - ja Test clock outputs Number of test pulse outputs - 2 Environmental data Climatic suitability to ... - EN 60068-2-30 EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14 Ambient temperature standard - EN 60068-2-14 Ambient temperature - 0 Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-30 EN 60068-2-78 Humidity rating - 93 % r. F. bei 40 °C Condensation permitted? - unzulässig Perm. operating height ASL - 2000 m EMC to standard ... - EN 61000-4-4 EN 61000-6-2 EN 61000-4-5 EN 61000-4-6 EN 61000-6-4 EN 61000-4-2 EN 61000-4-3 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Acc. shock to standard2 - 10g Clearance & creepage dist. to - EN 60664-1 Overvoltage category - II Pollution degree clear.&creep. - 2 Protection type standard - EN 60529 Protection type, mounting - IP54 Protection type, housing - IP20 Terminal protection type - IP20
