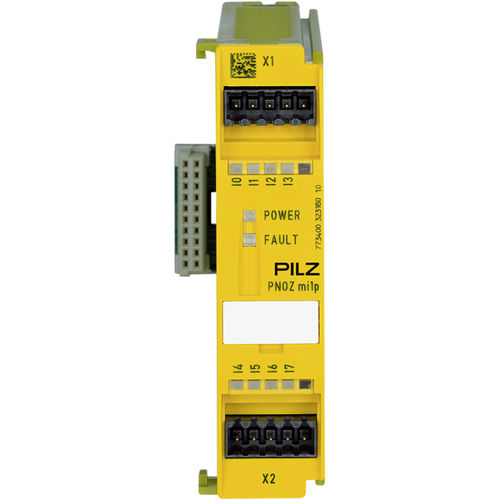

Digital I/O module PNOZ mi1p

8 digital inputspositionDIN rail

PNOZmulti Classic, expansion module, failsafe, 8 digital inputs. General data Approval - CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV Technical data Electrical data Purpose of UINT1 - Module supply Source of internal voltage - Via base unit Voltage type of UINT1 - DC Tolerance of UINT. Module - -2 %/+2 % Inputs Number of digital inputs - 8 Signal level at input at 0 - -3 - +5 VDC U input to EN 61131-2 Type 1 - 24 V DC Potential isolation input - No Environmental data Ambient temperature standard - EN 60068-2-14 Ambient temperature - 0 °C Storage temperature standard - EN 60068-2-1/-2 Climatic suitability standard - EN 60068-2-30 EN 60068-2-78 Humidity rating - 93 % r. h. at 40 °C Condensation permitted? - Not permitted Perm. operating height ASL - 2000 m EMC to standard ... - EN 61131-2 Vibration to standard ... - EN 60068-2-6 Acc. shock to standard1 - 15g Clearance & creepage dist. to - EN 61131-2 Overvoltage category - III Pollution degree clear.&creep. - 2 Protection type standard - EN 60529 Protection type, mounting - Protection type, housing - Terminal protection type - Mechanical data Mounting position - horizontal on top hat rail DIN-rail dimensions - 35 x 7.5 EN 50022 Housing material lower section - PPO UL 94 V0 Housing material front plate - ABS UL 94 V0 Connection terminal - Screw terminal Spring-loaded terminal Flex. cond. c/s AWG info - 24 - 16 AWG Height dimension - 94 mm Width dimension - 22.5 mm Depth dimension - 121 mm Net weight - 120 g Gross weight - 138 g
