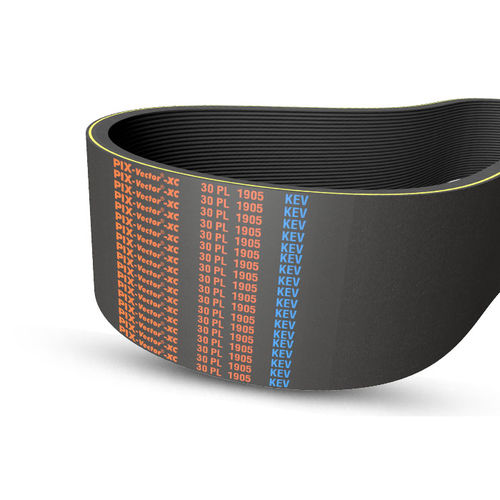

Poly V power transmission belt PIX-Vector®-XC
rubberaircraft enginefor rotors

poly V power transmission belt
poly V power transmission belt
poly V power transmission belt
poly V power transmission belt
Add to favorites
Compare this product


Characteristics

Type
poly V
Material
rubber
Product applications
aircraft engine, for rotors
Other characteristics
high wear resistance, anti-vibration, low-noise, aramide-corded
Length

Min.: 1,200 mm
(47.24 in)

Max.: 5,000 mm
(196.85 in)

Width

7.6 mm
(0.299 in)

Temperature

Min.: -25 °C
(-13 °F)

Max.: 100 °C
(212 °F)

Description

Specially designed to meet the high power transmission requirements of the rotor-drives used in aero engines. The high modulus rubber compound and the specially treated cord used in the Belt, facilitates vibration & noise-free power transmission. Features - Enhanced power transmission capacity - Special aramid cord offers high tensile strength and negligible elongation - Highly flexible, noise-free and smooth running operation - Least vibrations - Wear resistant, facilitates easy clutch operation - Power transmission through a single Belt, eliminating the use of a set-of-Belts - Machined ribbed driving surface for maximum area of contact and reduced face pressure - Temperature range: -25º to +100ºC Constructional Details 1.Special aramid cords offer high tensile strength and negligible elongation 2.Ribbed driving surface for maximum area of contact and reduced face pressure 3.Special rubber compound for high frictional grip and maximum tractive effort
