Speed converter XST-705A

mediaRS232gigabit Ethernet

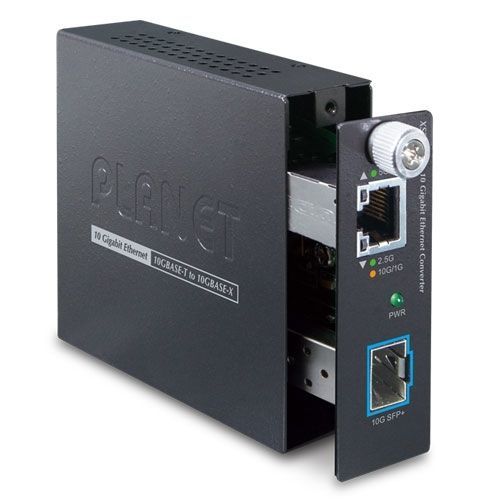

Flexible and Reliable Network Distance Extension SolutionPLANET XST-705A Smart Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode). They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.Diversified Central Management and Easy Chassis InstallationThe XST-705A Smart Media Converter can be used as a stand-alone unit or as a slide-in module to the PLANET 19-inch Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48). When working with Managed media converter chassis, the chassis can assist in providing DC power to the XST-705A and can be managed. Its port status such as link on/off can be monitored through the local RS232 console or remote web interface. Installing multiple XST-705As in the MC-1610MR is ideal for telecom and corporate applications where a number of 10Gbps fiber links need to be managed and controlled from a central location.High Performance 10Gbps Ethernet CapacityThe XST-705A offers wire-speed packets transfer performance without the risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments. With a 20Gbps internal fabric and featuring auto negotiation support in its 10 Gigabit port, the XST-705A Smart Media Converter can handle large amounts of data in a secure topology linking to a backbone or high capacity servers.Fiber-optic Linking Capability Enables Extension of Network DeploymentThe SFP+ slot of the XST-705A is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 10/40/60 kilometers (single-mode fiber cable). It is ideal for applications within the data centers and distributions.Low Power ConsumptionThe XST-705A adopting the advanced chip technology has the power-saving feature like a low power consumption of only 3.8watts when in full operation.Physical PortOne 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X functionOne 10GBASE-X SFP+ slotLayer 2 FeaturesIEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliantSupports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex modePrevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)16K jumbo frame size supportAutomatic address learning and address agingCase and InstallationExternal 5V DC, 2A power supplyWall-mount designSupports 6000 VDC Ethernet ESD protection100 meters over Cat. 6A / Cat. 7 at 10Gbps0 to 50 degrees C operating temperatureCo-works with PLANET’s 19” Managed Media Converter Chassis series (MC-1610MR / MC-1610MR48)Plug and Play installationHardware SpecificationsCopper Interface1 x 10G/5G/2.5G/1G/100BASE-T RJ45Auto-MDI/MDI-X, auto-negotiationFiber Optic Interface1 x 10GBASE-X SFP+ interfaceLEDSystem:PWR (Green)10G/5G/2.5G/1G/100 BASE-T RJ45 Interfaces:1G/10G LNK (Amber)5G/2.5G/100M LNK (Green)ESD Protection6KV DCEnclosureCompact-sized metal caseInstallationDesktop or wall mountingDimensions (WxDxH)93.8 x 80.75 x 26.4mmWeight182g (device only)Power Requirements5V DC, 2A max.Power Consumption3.8 watts / 13 BTU per hour (max.)Converter SpecificationsSwitch Processing SchemeStore and ForwardFlow ControlCopper Interface:Back pressure for half duplexIEEE 802.3x pause frame for full duplexFabric20GbpsJumbo Frame16KNetwork Cables10G/5G/2.5G/1G/100M BASE-T:10G--Cat. 6A/Cat. 75G--Cat. 6/Cat. 6A/Cat. 71G/2.5G--Cat. 5e/Cat. 6/Cat. 6A/Cat. 7100M--Cat. 5/Cat. 5e/Cat. 6/Cat. 6A/Cat. 7Cat. 5/5e/6/6A/7 UTP cable (100 meters, max.)EIA/TIA-568 100-ohm STP (100 meters, max.)10GBASE-LR/SR/BX:50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m9/125μm single-mode fiber optic cable, up to 60kmStandards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEOperating environment0 ~ 50 degrees CStorage Environment-10 ~ 70 degrees COperating Humidity5 ~ 95%, relative humidity (non-condensing)Storage Humidity5 ~ 95%, relative humidity (non-condensing)Standards ComplianceIEEE 802.3u 100BASE-TXIEEE 802.3ab 1000BASE-TIEEE 802.3bz 2.5G/5GBASE-TIEEE 802.3an 10GBASE-TIEEE 802.3ae 10Gbps EthernetIEEE 802.3x full-duplex flow control (Copper Port)
