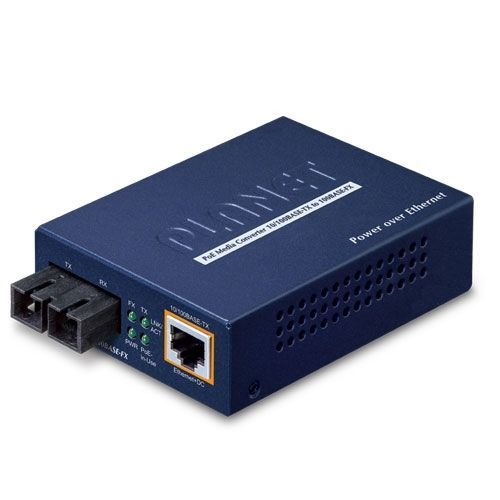

Down converter FTP-802

mediasignalsplitter

More than a Fiber Media Converter -- a Power over Ethernet Injector as well The best data link and power sourcing solution for long reach network equipmentPLANET FTP-80x series is ideal for remote network equipment deployments, using two networking technologies: Media Conversion: 100Base-FX to 10/100Base-TXPower over Ethernet: Power Sourcing Equipment (PSE), PoE InjectorProviding both PoE and fiber-optic interfaces, the FTP-80x is ideal for service providers, campuses and public areas requiring to deploy the PoE for wireless access points, IP-based surveillance cameras or IP phones in any places easily, efficiently and cost effectively.PoE Optimizes the Installation and Power Management of Network DevicesThe IEEE 802.3af capabilities of the FTP-80x reduce installation costs for many new network productivity devices. As an IEEE 802.3af Power over Ethernet Injector, the FTP-80x provides DC 48V voltage over Ethernet cables. It allows the twisted pair cable between the FTP-80x and IEEE 802.3af compliant PD (Powered Device) or PoE Splitter (such as POE-151S-5V / 12V) to transfer data and power simultaneously.Fiber-optic Link Capability Extends the Range of Network DeploymentsThe maximum distance from the PoE PSE and PD is 100 meters. To extend the deployment range of network device, the FTP-80x is integrated with fiber interface. The FTP-80x PoE Media Converters are used to convert optical Ethernet signal to electrical Ethernet signal that allows two type of segments to connect easily, efficiently and inexpensively. It can convert 10/100Base-TX signal to 100Base-FX signal and provides the diverse fiber connecting types of options to meet different network applications. By selecting models, the maximum networking distance can extend to as long as 15 kilometers and still sustain the transmission performance as high as 100Mbps. It works in high performance of Store and Forward mechanism and if also can prevent packet loss with IEEE 802.3x flow control (full-duplex). With the LFP (Link Fault Pass-through function),(LLCF / LLR) and the DIP switch design, it can immediately alarm administrators problems of the link media and provide efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.Advantage of Combined PoE and Media ConversionWith the data, long reach fiber capability and PoE from one unit, the FTP-80x will reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It frees the security IP camera and wireless AP deployment from restrictions due to power outlet locations. Power and data switching are integrated into one unit and delivered over a single cable, eliminating costs for additional AC wiring and reducing installation time.The IEEE 802.3af Equipment InstallationThe FTP-80X provides the easiest way to power your Ethernet devices such as PLANET IEEE 802.3af Power over Ethernet Splitter (POE-151S / 152S) with non PoE Internet camera or wireless PoE access point (IAP-2000PE). For instance, security IP camera, wireless access point and other IEEE 802.3af compliant network equipment can be easily installed around corners in public areas such as stations or freeways for surveillance demands, or wireless roaming environment in campuses or airports can be set up.Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX, IEEE 802.3af Power over Ethernet standardsAuto negotiation for 10/100Base-TX half duplex mode or full duplex mode, auto-MDI / MDI-X function on copper portIEEE 802.3x full duplex flow control and back pressure in half duplex eliminate packets lossProvides DC 48V power over RJ-45 Ethernet cable to devices with Ethernet portAuto-detect PoE IEEE 802.3af equipment; protects devices from being damaged by incorrect installation100Base-FX interface for up to 2km (multi-mode fiber 50µm/125µm, 62.5µm/125µm) on FTP-802100Base-FX interface for up to 15km (single-mode fiber 9µm/125µm) on FTP-802S15DIP-switch: LFP (Link Fault Pass-through) mode selectionCompact in size, easy to installLED indicators for easy network diagnosticsInterfaceCopper1-port Fast Ethernet TP interface, auto negotiation, auto-MDI / MDI-X with PoE injector functionFiberFTP-802: Multi-mode: 50/125µm or 62.5/125µm optical fiberFTP-802S15: Single-mode: 8.3/125, 8.7/125, 9/125µm optical fiberFiber Port Type (connector)FTP-802 : SCFTP-802S15 : SCCable DistanceFTP-802 : 2kmFTP-802S15 : 15kmOptical FrequencyFTP-802 : 1310nmFTP-802S15 : 1310nmLaunch Power(dBm)FTP-802 : max.-14 min.-19.0FTP-802S15 : max. -7 min.-20Receive SensitivityFTP-802 : -34.5FTP-802S15 : -28Maximum Input PowerFTP-802 : -14FTP-802S15 : -8Power over EthernetPoE StandardIEEE 802.3af Power over EthernetPower OutputPoE 48V DC, max. 15.4 watts, 350mAPower Pin Assignment1/2(+) , 3/6(-)Hardware SpecificationsSwitch ArchitectureStore-and-ForwardFlow ControlBack pressure for half duplex modeIEEE 802.3x pause frame for full duplex modeLEDSystem: Power, StatusFX / LNK: Data Active, Fiber LinkTX / LNK: 10/100 Link / ActivePoE in Use: Detects PSE DeviceDimensions (H x W x D)94 x 70.3 x 26.2 mmWeight0.2 kgPower Supply48V DC, 0.4A external AC-to-DC adapterOperating Temperature0~50 degrees COperating Humidity5~90% (non-condensing)LFP ModeEnable: when either TP port or FX port is broken, shut down the other portDisable: Link LED indicators is still on if connection of the other end is brokenStandards ConformanceRegulation ComplianceFCC Part 15 Class A, CEProtocols and Standards ComplianceIEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3x Flow ControlIEEE 802.3af Power over EthernetCablesTP: Cat 5/5e UTP cableFiber: Multi-mode: 50/125µm or 62.5/125µm optical fiberSingle-mode: 8.3/125, 8.7/125, 9/125µm optical fiberModel: FTP-802: 100Base-FX to 10/100Base-TX PoE Media Converter (SC,MM)-2kmModel: FTP-802S15: 100Base-FX to 10/100Base-TX PoE Media Converter (SC,SM)-15km
