Ball valve

electricfor sludgefor pump

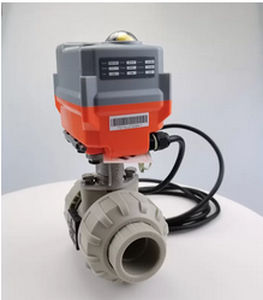

The Electric Actuator Ball Valve has simple structure, good sealing performance, no stuck and is easy to operate and easy to open and close quickly, which make it widely used. It has been developed in the direction of high temperature and high pressure, large diameter, high sealing, long lifetime and excellent regulation performance. And it has achieved a high level. The Electric Actuator Ball Valve, which is independently developed by Xintai Instruments and has the same advanced foreign technology, adopts self-formulated hard alloy hardening technology, and its service lifetime is more than three times that of conventional metal-sealed ball valves. The wear-resistant ball valves are commonly used in working conditions such as silicon powder, mineral powderand coal powder gas transmission, mud pump and so on. TCN-02N-DC Series normal on/off actuator usage instructions ◎ Rated voltage: DC24V,DC12V ◎ Rated torque: 20Nm@DC24V[24N.m@Max],15Nm@DC12V[24N.m@Max] ◎ Install valves: 2-way, 3-way valve ◎ Wiring and feedback model: B3,BD3,B3S,BD3S,B3C,BD3C ◎ High performance brushless motor,Overload protection of internal motor ◎ It can be used 20,000 times.*1 ◎ Two and more actutors can be used in parallel
