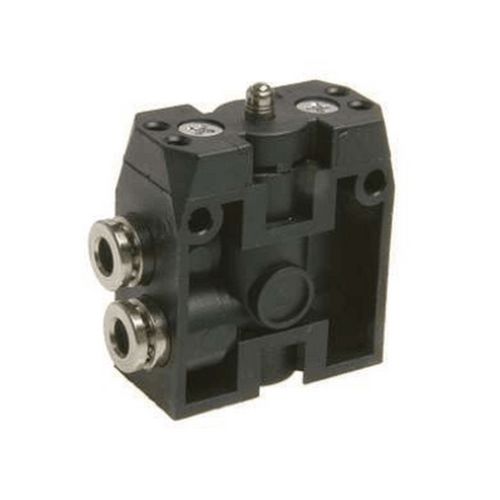

Spool pneumatic directional control valve 104 series

manualmechanically-operatedpneumatic

New 104 micro valves series have been realized as an economic version to complete the range of 105 valves version. With their small overall dimensions it makes easy installation and operation. Their main characteristic is the possibility to choose between the version with lateral or rear pneumatic connections realized with quick fitting for Ø4mm tube included. the valves are available with 2 or 3 ways versions, normally closed or opem, 5 ways and 5 ways 3 positions open centres and pressured centres. The 5 ways version is made with two 3 ways valves placed side by side with common inlet. 1 the operators available for this valve are push button (different versions), selector (key, short and long lever), lever (lever roller or level undirectional) and pneumatic. It is also possible to combine the 2 and 3 ways valves with electrical switches, normally closed or open.
