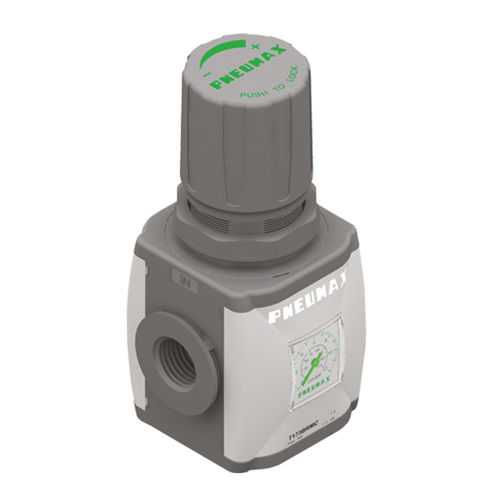

Pressure regulator with filter Serie Airplusfor compressed airmembranesingle-stage
Add to favorites
Compare this product
Characteristics
- Product
- for compressed air
- Technology
- membrane
- Number of stages
- single-stage
- Material
- HDPE
- Other characteristics
- compact, high-precision, with filter, relieving
- Pressure
Min.: 0.5 bar
(7.25 psi)Max.: 20 bar
(290.08 psi)- Flow
8,000 l/min
(2,113.38 us gal/min)- Orifice diameter
5 µm, 20 µm, 50 µm
- Temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
• Diaphragm pressure regulator with relieving
• Available in 4 sizes with flow rates up to 8000 Nl/min and connections from 1/8” to 1”
• Low histeresis rolling diaphragm and balanced spool
• Available in four pressure ranges up to 12 bar
• Fitted with panel mounting locking ring
• Available with pressure gauge or digital pressure switch integrated
• Atex certification (II 2GD or II 3GD)
• Inlet pressures up to 20 bar
