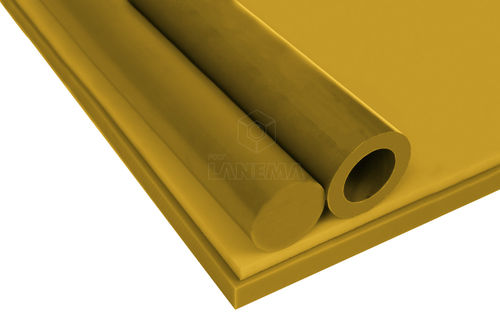

Plate PAI DURATRON® T4203

solid rodhollow rodwear-resistant

The Duratron® T4203 PAI offers the best toughness and impact resistance of all Duratron® PAI grades. The Duratron® PAI extruded is very popular for precision parts in high-tech equipment. In addition, its good electrical insulation capability offers numerous possibilities in the field of electrical components. Duratron® T4503 PAI compression molded, has a composition similar to Duratron® T4203 PAI and is selected when larger shapes are required. The Duratron® T4203 PAI is especially used in electrical connectors and can chucks. MAIN CHARACTERISTICS - High maximum service air temperature (250 ° C continuous) - Excellent retention of mechanical strength, stiffness and creep resistance over a wide temperature range - Excellent dimensional stability up to 260 ° C - Very good resistance to UV rays - Exceptional resistance against high energy radiation (gamma rays and X-rays) -Independent low flammability APPLICATIONS - Electrical and insulating connectors - Structural components (such as connections and sealing rings) - Wear applications involving impact load and abrasive wear - Standard Matrix of Metal Parts Shaped (T4503) - Cages for bearings
