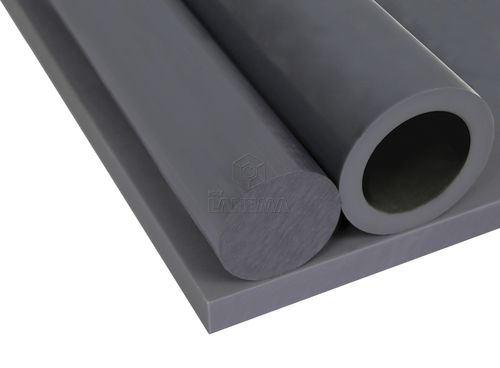

Rod PA NYLATRON® NSM

sheet

Nylatron NSM is a proprietary cast nylon 6 formulation containing solid lubricant additives which grant this materials self-lubricity, excellent frictional behaviour, superior wear resistance and outstanding pressure-velocity capabilities [up to 5 times higher than conventional cast nylons]. Being particularly suited for higher velocity, unlubricated moving parts applications it is the perfect complement to the oil-filled grade Ertalon LFX. MAIN CHARACTERISTICS - Excellent slip properties - Low coefficient of friction - Self-lubricating - High wear resistance - Pressure-speed values up to 5 times higher than conventional polyamides - Good resistance to high energy radiations (Gamma and X Rays) - Good electrical insulation properties - High mechanical damping capacity - Easy machining APPLICATIONS - Bushes with rotation, subject to high loads - Sliding guides - Large parts - Especially recommended for non-lubricated applications with high creep speeds - Bearings - Rollers, wheels, wear components - Wear pads - Gears
