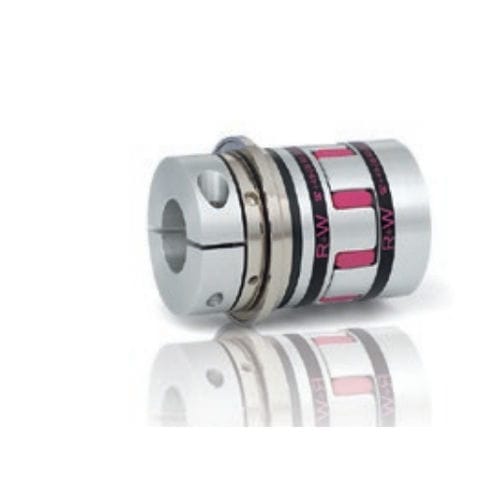

Mechanical torque limiter ES2spring
Add to favorites
Compare this product
Characteristics
- Operation
- mechanical
- Other characteristics
- spring
- Torque
Max.: 1,800 Nm
(1,327.611869 ft.lb)Min.: 1 Nm
(0.737562 ft.lb)
Description
MATERIAL
Clutch system: hardened steel
Hub D1: up to size 450 high strength aluminum, size 800 and up steel
Hub D2: up to size 60 high strength aluminum, size 150 and up steel
Elastomer insert: wear resistant thermally stable TPU
DETAILS FOR ELASTOMER INSERTS
see page 72/73
DESIGN
Two clamping hubs with one clamping
screw in each and concave driving jaws.
Backlash free, vibration damping, electrically isolating elastomer insert press fit into the jaw sets. Clutch system: spring loaded ball-detent principle.
AVAILABLE FUNCTION SYSTEMS
W = Single postion / automatic re-engagement (standard)
D = Multi-position / automatic re-engagement
G = Load holding / load blocking
F = Full disengagement / manual re-engagement
