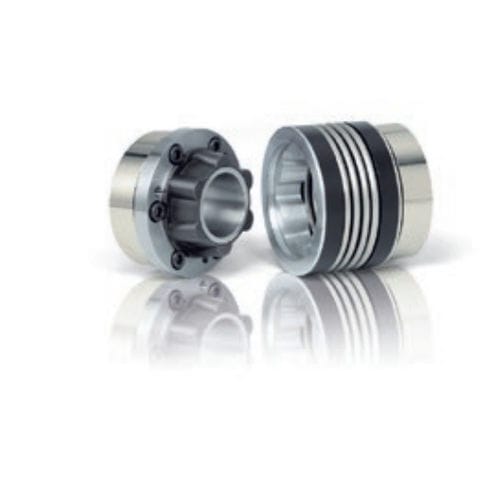

Bellows coupling BK6torque
Add to favorites
Compare this product
Characteristics
- Type
- bellows
- Other characteristics
- torque
- Torque
Max.: 1,500 Nm
(1,106.343224 ft.lb)Min.: 15 Nm
(11.063432 ft.lb)
Description
axial mounting possible
easy installation and removal
naturally very well balanced due to
self centering clamping ring system
absolutely backlash free assembly
MATERIAL
Bellows: high grade stainless steel
Hubs: steel
Tapered male segment: high strength plastic
DESIGN
Two conical clamping ring hubs, one of which has a tapered male projection for bind mate connection. Brief overloads of up to 1.5x the rated torque are acceptable.
