Monitoring software I410 GFS

automationmeasurementdata acquisition and analysis

Overview

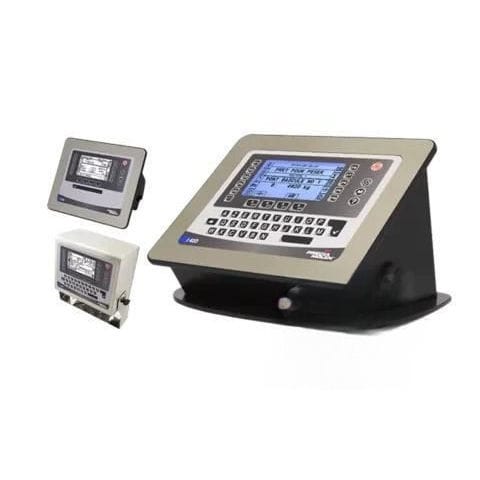

The I410 GFS bagging software is the measurement and control application developed by PRECIA MOLEN for gravimetric control of single or dual weigh-hopper dosing machines. Installed on an I410 terminal, the I410 GFS software can replace existing indicators in semi-automatic or automatic bagging lines. It manages net and gross weighing and is designed for packaging granular and powdered products into open-mouth bags, valve bags, drums and barrels.

Key features

• Control of single or dual weigh-hopper dosing machines
• Net and gross weighing modes
• Replacement of existing indicators in bagging lines
• Suitable for granular and powdered products
• Compatible with open-mouth bags, valve bags, drums and barrels

Functional highlights

• Control of three filling speeds
• Management of adjustment, reset (zero) and normal filling cycles
• Configurable empty-trigger threshold for weighing unit discharge
• Automatic hopper error correction
• Automatic or remote dose correction
• Interface capability with CKW-type checkweigher installed in the bagging line
• Synchronization control for dual-line weighing

Additional information

• In-house software developed by PRECIA MOLEN
• Customizable to application requirements
• Delivered as a global solution on I410 terminal
• Designed for integration into existing packaging lines

Technical specifications

• Manufacturer: PRECIA MOLEN
• Model: I410 GFS
• Application: Gravimetric filling and bagging of granular and powdered products
• Weighing modes: Net and gross
• Supported containers: Open-mouth bags, valve bags, drums, barrels
• Control capacity: Single or dual weigh-hopper dosing machines; three filling speeds; adjustment, reset and normal cycles
• Emptying control: Configurable empty-trigger threshold for weighing unit discharge
• Correction functions: Automatic hopper error correction; automatic or remote dose correction
• Integration: Can connect to CKW-type checkweigher; synchronization control for dual lines
• Deployment: Software available on PRECIA MOLEN I410 terminals and intended to replace existing indicators in bagging lines
