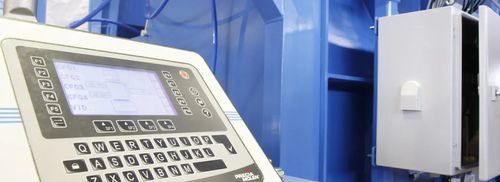

Multi-channel weighing controller I410 ABS

batchmultifunctiondigital

Product overview
The I410 weighing electronics with I410 ABS software is the measurement and control unit for PRECIA MOLEN hopper (bulk discontinuous) scales. It can replace existing indicators and control any circuit weighbridge (hybrid lever or fully electronic) with one or multiple filling heads. The system is designed for receiving, shipping and product transfer operations and delivers high throughput — up to 500 cycles/hour depending on product characteristics.

Main functions

• Quick adaptation to different products handled.
• Self-adjustment to variations in product feed rate.
• Product leakage detection and monitoring.
• Automatic grounding control when the circuit is equipped with a calibrated grounding device.
• Management of feed-circuit tape tail via a preset setpoint.
• Startup and end-of-operation report printing; operation logging to printer or USB (virtual printer).

Key features

• Replaceability of existing indicators to modernize installations.
• Control of hybrid-lever or fully electronic circuit weighbridges.
• Support for one or multiple filling heads.
• Customizable configuration and in-house developed software.

Use cases
Discontinuous bulk weighing for receiving, shipping and product transfer of dry granular materials. Suited to industrial installations requiring high cycle rates and automated circuit weighing.

Technical specifications

• Model: I410 ABS (I410 weighing terminal with ABS application).
• Application: Automatic discontinuous bulk weighing on circuit/hopper scales.
• Compatibility: Can replace most indicators on existing installations.
• Supported weighbridge types: Hybrid lever or fully electronic.
• Filling heads: Supports one or multiple heads.
• Primary functions: Receiving, Shipping, Product Transfer.
• Performance: Throughput up to 500 cycles/hour (depending on product type).
• Software capabilities: Quick product adaptation; self-adaptation to feed-rate variations; leakage monitoring; automatic grounding control (if equipped); tape-tail management via setpoint; report printing and logging to printer or USB.
• Designed for: PRECIA MOLEN hopper (circuit) scales.
