Electronic weighing machine ABS-XF

for the food industryfor bulk materialsfor powders

Product overview

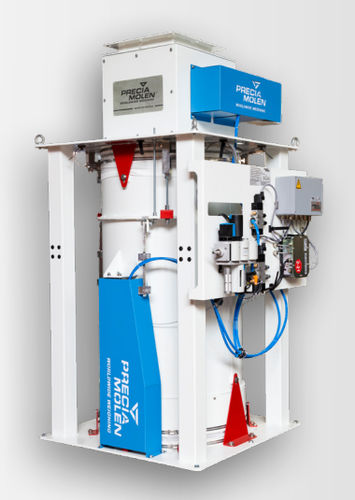

The ABS-XF circuit hopper scale is designed for the automatic weighing of flour in milling operations. It can be installed for internal process control or certified for legal-for-trade applications such as loading stations. The structure is made of S235G steel with a food-grade paint finish; a 304L stainless steel variant is available for hygienic or corrosive environments. For safety and maintenance, all components are externally accessible. The scale is controlled by I410 ABS electronics and can be configured for commercial transactions.

Available variants & finishes

• Standard: S235G steel structure with food-grade paint
• Hygienic: 304L stainless steel, micro-bead blasted finish

Key features

• Automatic/discontinuous weighing of bulk products, optimized for flour in milling circuits
• Configurable for internal process control or legal-for-trade (commercial) use
• Robust industrial design with all components accessible from the outside for maintenance and safety
• Controlled by I410 ABS electronics (allows commercial/legal transactions)
• Available versions for use in explosive atmospheres (Ex/ATEX)

Certifications & attributes

• Approved for commercial transactions (legal-for-trade capable)
• Manufactured in France
• Available for explosive-area certification

Technical specifications

• Denomination / Model: ABS-XF
• Typical use: Automatic weighing of flour in milling circuits; loading station applications
• Structure material: S235G steel with food-grade paint (standard)
• Alternative structure: 304L stainless steel, micro-bead blasted finish
• Electronics / Controller: I410 ABS electronics
• Maintenance: All components accessible from the outside for safe and easy maintenance
• Suitability: Legal-for-trade capable; available for explosive-area (Ex) environments
