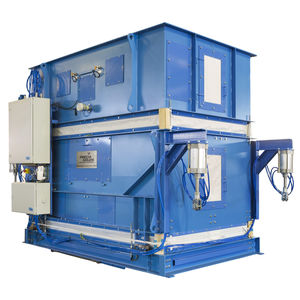

Continuous weighing machine ABS-X Ex series

electronicfor the food industryfor bulk materials

Overview
The ABS-X Ex in-line hopper scale is designed for automatic in-line (process) weighing of free-flowing dry granular products such as cereals, seeds and animal feed. Available in 10 m³/h and 300 m³/h capacities and in a stainless steel version, it provides a low profile and compact footprint for easy integration into agricultural and process lines. All product-contact parts are finished with food-grade paint and electrical/mechanical components comply with ISO standards for industrial reliability.

Key features

• Filling and discharge hoppers mounted on ball bearings for smooth operation
• Directly supported weighing hopper (no levers or counterweights) for stable measurement
• Accessible calibration with fixed calibration weight supports on each side of the weighing hopper
• Weighing cycle controlled by the I410 ABS instrumentation system; electro-pneumatic actuators control each hopper

Options

• Dual measurement channels for redundant weight control
• Wear-resistant internal plates for abrasive products
• Upstream and downstream hopper configurations for process integration
• Turnkey structural supply and on-site installation

Certifications / Attributes

• Made in France
• Global solution for process weighing
• Available in Legal for Trade (metrological) version
• Adaptable to installation constraints
• Versions available for explosive atmospheres (Ex)

Technical specifications

• Model: ABS-X Ex
• Product type: Hopper scale / in-line (process) weighbridge
• Capacities: 10 m³/h and 300 m³/h
• Material / versions: Standard and stainless steel versions available
• Product-contact finish: Food‑grade paint
• Hopper support: Ball-bearing filling/discharge; direct support (no levers or counterweights)
• Calibration: Fixed lateral supports for calibration weights
• Control system: I410 ABS instrumentation system (manages weighing cycle and electro‑pneumatic actuators)
• Options: Dual measurement channels, wear-resistant plates, upstream/downstream hoppers, turnkey structures
• Application: Designed for free-flowing dry granular products (e.g., cereals, seeds, feed); Ex versions available
• Compliance: Electrical and mechanical components conform to ISO standards
