Air treatment ozone generator Ozone

industrialfor disinfectioncontainerized

Overview
Technology for controlling odours, gases and bacteria in waste compactors. The system generates ozone on-site using a CGC (Corona Glass Cell) and is designed for safe, cost-efficient and environmentally compatible operation in containerised applications.

Technology and operation
Ozone (O3) is a molecule of three oxygen atoms with strong oxidizing properties. The PRESTO unit uses a CGC (Corona Glass Cell) to produce ozone from ambient air via an electrical charge. The unit is mounted inside the container and connected through a perforated plate to distribute ozone into the compacted waste volume.

Timer and controls
The generator includes an asymmetric timer to control ozone production cycles. To adjust the timer, cut the main power supply behind the front cover. Set the ozone ON interval with TON and the OFF interval with TOFF. Controls are intended for installation-accessible adjustment only.

Images

• Product exterior
• Product interior

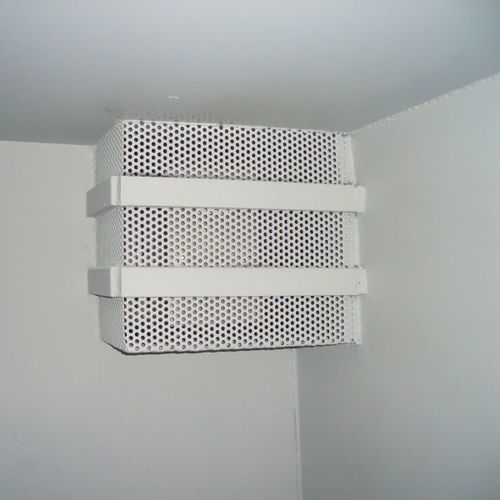

• Container with ozone unit

Specifications

• Application: Odour, gas and bacteria control in waste compactors
• Ozone generation technology: CGC (Corona Glass Cell) — generates ozone from air by electrical charge
• Ozone: O3 — highly reactive, oxidizes organic compounds
• Installation: Unit installed inside container; connection via perforated plate
• Timer: Asymmetric timer with TON (ON time) and TOFF (OFF time)
• Timer adjustment: Main power supply must be switched off behind front cover to set timer
• Design focus: safety, cost-efficiency and environmental compatibility
