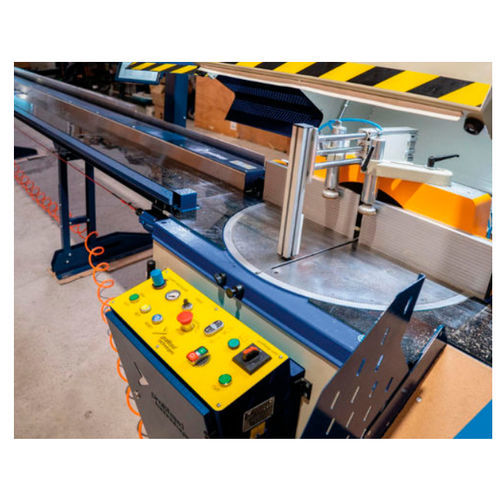

Fully-automatic saw A550

cut-offfor aluminum

Fully automatic cutting of medium-large aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists.

Optional fully automatic inline optimiser. Automatic measuring of aluminium profile lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional).

• Fully-automatic cutting operation with bar feeding and cutting to length.

• Simple user interface for automatic operation, enter job and cut in seconds.

• Simplified part, batch, or large excel lists job cutting.

• Bundled / multi-bar cutting and counting.

• Remote WIFI excel job lists input with extensive data mapping capabilities.

• Automatic labels printing for parts using data from the job list (manual label application, optional).

• Bar codes or QR codes printing or scanning for jobs input (optional).

• Automated servo positioning of the saw mitre angle up to ±75 (optional).

Highly suitable for:

• Windows and doors manufacture

• Mitered aluminium structures manufacture

• Aluminium fabricated structures manufacture

• Composites manufacture

• Blinds, shades and furniture manufacture

• Aluminium retail sales

Model: A550

Pushing capacity: 20 - 40 kg

Available lengths:

3m, 4.5m, 6m, 7.5m, 9m

Stroke:

1.68m, 3.18m, 4.68m, 6.18m, 7.68m

Custom lengths available on request.
