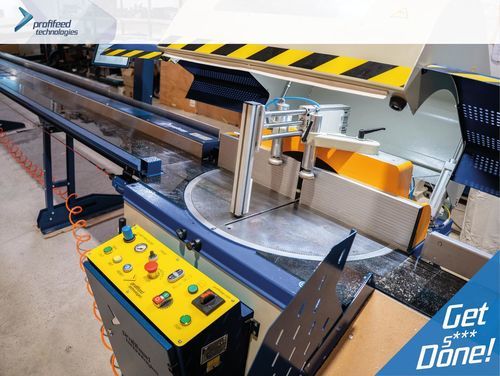

Aluminum saw A550 Semi-Automatic Aluminium Saw

semi-automatic

Supercharge your aluminium cutting productivity with one of the most flexible, large-capacity saws around.

A550 is designed for high mitre angle cutting with a huge ±75º saw mitre range supported by a large capacity blade to provide genuine high-angle cutting capability but without compromising on the aluminium size you may need to cut. Suitable for bundle-cutting many profiles at once and with high-precision.

High-speed aluminium processing with precision PLC controlled motion.
Pneumatic-actuated safety guard opening and closing with a press of a button for full unimpeded saw table access. Safety switch disabling of the saw on guard up.

Optional CNC controlled saw mitre angle positioning with touch-pad screen control.



• Ø550 mm TCT saw blade with 4 kW drive motor
• AS / NZS 4024:2014 safety standard, two hand press cut operation
• Overhead safety guard with safety tunnels 900 mm each side of the saw
• Safety guard pneumatically liftable on a press of a button
• Safety switch disabling the saw operation on guard up
• 2x vertical and optional 2x horizontal clamps with adjustable clamp pressure
• Mitre angle ±75 with pin locating at 0, ±15, ±22.5, ±30, ±45, ±60, ±75
• Spray-mist blade lubrication system
• Air gun and LED interior light
• 2× Ø100 mm attachment points for chip collection
• Optional 2.2 kW chip vacuum extractor
• Optional automated mitre control system

Highly suitable for:
• Windows and doors manufacture
• Mitered aluminium structures manufacture
• Aluminium fabricated structures manufacture
• Composites manufacture
• Blinds, shades and furniture manufacture
• Aluminium retail sales
