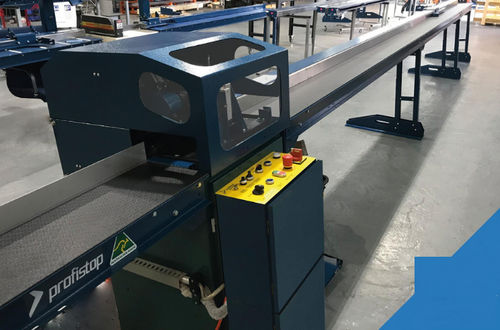

Cut-off saw S200

for steelfully-automatic

Fully automatic cutting of hardened and stainless steels with simple-to-use automation. Put down any steel to cut, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists.

Optional fully automatic inline optimiser. Automatic measuring of steel lengths using a laser sensor and on-the-fly job list optimisation against the length measured for minimised wastage in offcuts. Automatic printing of job / part number labels for each part produced (optional).

• Fully-automatic cutting operation with bar feeding and cutting to length.

• Simple user interface for automatic operation, enter job and cut in seconds.

• Simplified part, batch, or large excel lists job cutting.

• Remote WIFI excel job lists input with extensive data mapping capabilities.

• Fully adjustable saw cutting and material feeding rates for maximum process productivity.

• Automatic optimiser operation with input material laser length measure and auto-optimisation for minimum waste (optional).

• Automatic labels printing for parts using data from the job list (manual label application, optional).

• In-line direct-to-material printing with no operator action required (optional).

• Bar codes or QR codes printing or scanning for jobs input (optional).

Highly suitable for:

• Stainless and hardened steels manufacture

• Hydraulic tubing manufacture

• Composite / matrix materials manufacture

• Carbon fibre manufacture

• Fiberglass manufacture

Model: S200

Pushing capacity: 20 - 40 kg

Available lengths:

3m, 4.5m, 6m, 7.5m, 9m

Stroke:

1.68m, 3.18m, 4.68m, 6.18m, 7.68m

Custom lengths available on request.

QUALITY AUSTRALIAN-MADE MACHINES.
