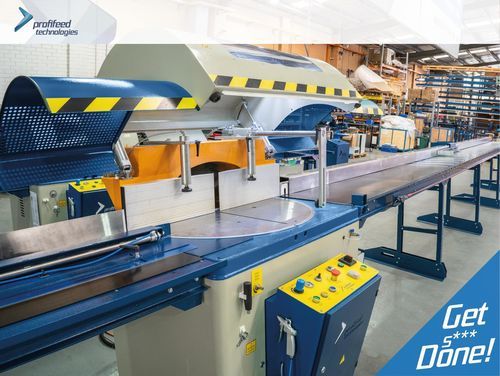

Aluminum saw A700 Semi-Automatic Aluminium Saw

semi-automatic

No matter what job you need to cut A700 is the only saw you will ever need.

With the largest capacity in its class and massive ±75º mitre angle range capability, it is designed for genuine high mitre angle cutting without compromising on the size of the aluminium profiles you may need to cut. Suitable for bundle-cutting many profiles at once and with high-precision.

High-speed aluminium processing with precision PLC controlled motion. Pneumatic actuated safety guard, opening and closing with a press of a button for a full unimpeded saw table access. Safety switch disabling the saw on lifting of the guard.

Optional CNC controlled saw mitre angle positioning with touch-pad screen control.



• Ø700 mm TCT saw blade with 4 kW drive motor
• AS / NZS 4024:2014 safety standard, two hand press cut operation
• Overhead safety guard with safety tunnels 900 mm each side of the saw
• Safety guard pneumatically liftable on a press of a button
• Safety switch disabling the saw operation on guard up
• 2x vertical and optional 2x horizontal clamps with adjustable clamp pressure
• Mitre angle ±75 with pin locating at 0, ±15, ±22.5, ±30, ±45, ±60, ±75
• Spray-mist blade lubrication system
• Air gun and LED interior light
• 2× Ø100 mm attachment points for chip collection
• Optional 2.2 kW chip vacuum extractor
• Optional automated mitre control system



Highly suitable for:
• Bulk aluminium manufacture
• Mitered aluminium structures manufacture
• Windows and doors manufacture
• Blinds, shades and furniture manufacture
• Fabricated aluminium structures manufacture
• Aluminium facades manufacture
