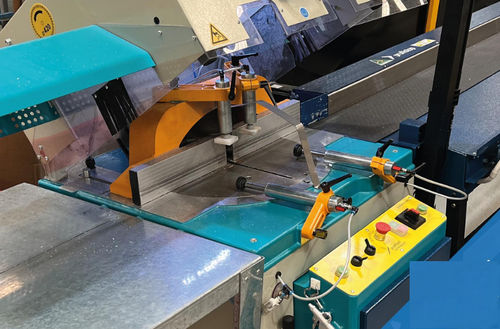

Cut-off saw A420

woodfully-automatichigh-accuracy

Fully automatic cutting of small-medium wood with simple-to-use automation. Put down any wood and the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists.

Your fully automatic saw can optionally come as an inline optimiser saw. For every piece of wood, you place down to cut, no matter what length, a laser sensor will measure its length. Our powerful optimisation algorhithm then takes your cut list and calculates the best order of parts to cut from this wood so that wastage is minimised. All of this happens on-the-fly, during the machine operation process, and without needing any input from you.

•     Fully-automatic cutting operation with bar feeding and cutting to length.

 •     Simple user interface for automatic operation, enter job and cut in seconds.

•      Simplified part, batch, or large excel lists job cutting.

 •     Remote WIFI excel job lists input with extensive data mapping capabilities.

 •     Fully adjustable saw cutting and timber feeding rates for maximum process productivity.

 •     Automatic labels printing for parts using data from the job list (manual label application, optional).

 •     Inline direct-to-material printing with no operator action required (optional).

 •     Bar codes or QR codes printing or scanning for jobs input (optional).

Highly suitable for:

•     Planters and boxes manufacture

•     Light wood manufacture

•    Decorative manufacture

•    Woodcraft manufacture

•    Furniture manufacture

Model: A420

Pushing capacity: 20 - 40 kg

Available lengths:

3m, 4.5m, 6m, 7.5m, 9m

Stroke:

1.68m, 3.18m, 4.68m, 6.18m, 7.68m

Custom lengths available on request.

QUALITY AUSTRALIAN-MADE MACHINES.
