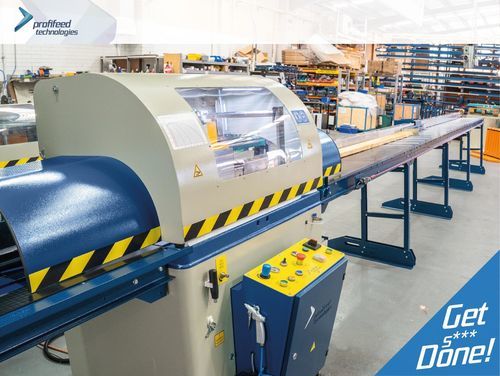

Semi-automatic saw A700

No matter what job you need to cut A700 is the only saw you will ever need.

With the largest capacity in its class and massive ±75º mitre angle range capability, it is designed for genuine high mitre angle cutting without compromising on the size of the timber you may need to cut. Suitable for bundle-cutting many timbers at once and with high-precision.

High-precision timber processing with PLC controlled motion. Pneumatic actuated safety guard, opening and closing with a press of a button for a full unimpeded saw table access. Safety switch disabling the saw on lifting of the guard.

Optional CNC controlled saw mitre angle positioning with touch-pad screen control.



• Ø550 mm TCT saw blade with 4 kW drive motor
• AS / NZS 4024:2014 safety standard, two hand press cut operation
• Overhead safety guard with safety tunnels 900 mm each side of the saw
• Safety guard pneumatically liftable on a press of a button
• Safety switch disabling the saw operation on guard up
• 2x vertical and optional 2x horizontal clamps with adjustable clamp pressure
• Mitre angle ±75 with pin locating at 0, ±15, ±22.5, ±30, ±45, ±60, ±75
• Spray-mist blade lubrication system
• Air gun and LED interior light
• 2× Ø100 mm attachment points for chip collection
• Optional 2.2 kW chip vacuum extractor
• Optional automated mitre control system



Highly suitable for:
• Windows and doors manufacture
• Mitered aluminium structures manufacture
• Aluminium fabricated structures manufacture
• Composites manufacture
• Blinds, shades and furniture manufacture
• Aluminium retail sales
