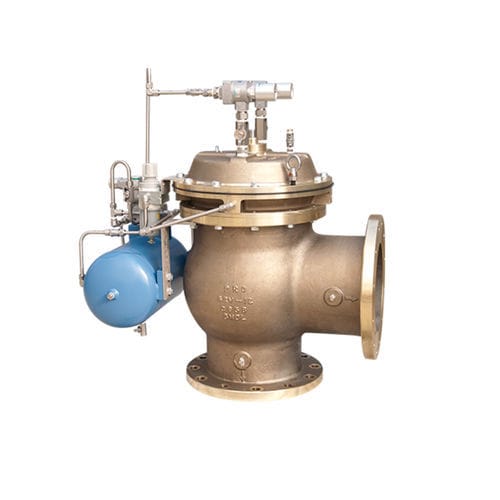

Pilot-operated solenoid valve SRVA

2-waynormally closednormally open

SRV is installed in the bypass pipeline to protect the piping system from the surge(Water hammer) by sudden flow change and sudden pump stop. Model SRV-PDA consists of a main valve, solenoid valve and air set, which is completely assembled and tested as a unit and ready for field installation. Main Valve is closed tightly when normal operation is in state. When a exceeding pressure in piping system is occurred, surge pressure signal from pressure transmitter operates the solenoid valve, and main valve is opened to protect the surge (water hammer). Full opening time is less than 200 millisecond. Benefits Adjustable of Opening and Closing Times In particular, fully opening time is less than 200 millisecond. Opening and closing time of SRV depends on field condition. Accurate and Precise Pressure Control is provided by pneumatic solenoid valve. Selective of Normal Opening mode/ Normal Closing mode SRV consists of solenoid valve, air receiver tank (optional) and air set, which enables Normal Opening or Normal closing of main valve.
