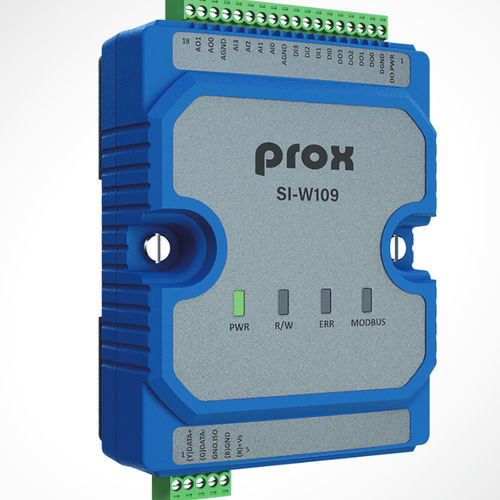

Digital I/O module SI-W109analogModbus RTURS-485
Add to favorites
Compare this product
Characteristics
- Signal type
- digital, analog
- Interface
- Modbus RTU, RS-485
- Number of inputs/outputs
- 4 digital inputs, 4 analog inputs, 4 digital outputs, 4 analog outputs, multi-channel, 2 analog outputs
- Mounting
- DIN rail, wall-mount
- Other characteristics
- multi-function
Description
Multi-Function I/O Module
● 4 Channels Analog input
● 2 Channels Analog output
● 4 Channels Digital input
● 4 Channels Digital output
● All Digital input channels can be used as 32 bit counters
● Support over voltage protection
● Support standard Industrial communication protocol
● Support wide operating temperature -25°C~75°C
● Support wide-ranged voltage DC In (9~50V)
System
Communication Interface RS-485
Baud Rate 9600 bps~115,200 bps (Max)
Communication Protocol Modbus / RTU
Intra-module Isolation 3000V
Installation DIN-Rail or Wall Mount
LED Indicator Power LED, Green
R/W LED, Orange
Error LED, Red
Modbus LED, Green
I2 C Interface Temperature / Humidity sensor module
Power Supply 9~50VDC In from terminal block
System Weight 210 g
Dimensions (W x H x D) 115 x 90 x 39 mm
Certification FCC / CE
Environment
Operating Temperature -25°C~75°C (-13°F~167°F)
(Ambient with airflow)
Storage Temperature -20°C~80°C (-4°F~176°F)
Humidity 20%~90%
