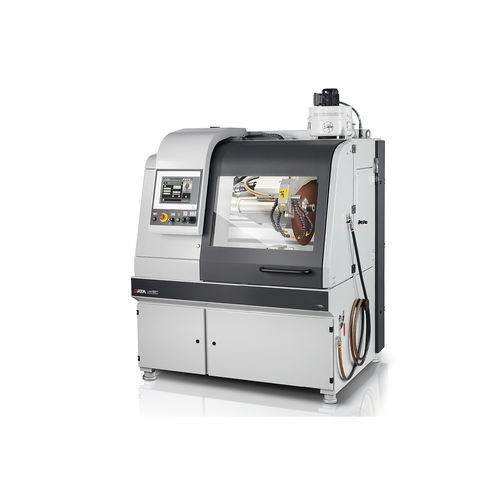

Rotary blade cut-off machine Qcut 600 BOT

with digital assistancewith control softwaremetallographic

Introduction
The Qcut 600 BOT is a fully automatic 5-axis cut-off robot for metallographic and industrial sample cutting, designed for cut-off wheels up to Ø 610 mm and a machine table diameter of Ø 600 mm.

Key advantages

• Patented 5-axis technology: Execute complex cutting sequences without time-consuming re-clamping of the workpiece.
• High automation level: Dynamic cut-off wheel measurement and automatic adaptation of cutting parameters enable unattended serial cutting.
• Reproducibility: Repeatable programs and precise positioning reduce variability between samples.
• Multi-Position Process (MPP): Simultaneous positioning and automatic cutting of multiple components on the table.

1. Ergonomic control panel

• Large 12.1" industrial touchscreen with intuitive QATM software
• Fast setup and full axis control via two joysticks
• Sliding control panel for unobstructed access and ergonomic operation

2. Robust machine body

• Powder-coated steel construction for industrial environments
• Integrable recirculating cooling unit
• Automatic central lubrication for axes

3. Large round machine table

• Stainless steel table with longitudinal and cross T-slots
• Secure clamping of complex workpieces using T-slot table or Easy clamping system
• Table diameter Ø 600 mm; load capacity up to 150 kg
• Table rotation (max. 360°) eliminates need for re-clamping

4. Large cutting chamber

• Large sliding door for easy access and visibility
• Side swing door for convenient access to the chamber
• Large side door for easy cut-off wheel replacement
• Break-resistant LED interior lighting

5. Optimized swivel arm

• Efficient cooling at the cutting point
• Increased cutting capacity via parallel-guided cut-off wheel guard
• Optional laser alignment aid for fast workpiece positioning

6. Rotation axis, B-axis

• Rotation range up to 360°; combined with C-axis up to 200° (automatic)
• Positioning accuracy ±0.1°

7. Optional rotation axis, C-axis

• Rotation range up to 360° (optional, removable modular axis)
• Expandable clamping options with lathe chuck or other devices

Cutting kinematics / Axes (overview)

• X-axis (travel cut): 550 mm, rapid traverse up to 80 mm/s
• Y-axis (chop cut): 360 mm, automatic, rapid traverse up to 80 mm/s
• Z-axis (cross feed): 550 mm, automatic (for precise parallel cuts in series)
• B-axis (rotation): max. 360° (4-axis) / 200° (5-axis), positioning accuracy ±0.1°
• C-axis (rotation, optional): max. 360°, removable modular axis

Drive, cooling and cutting optimization

• Water-cooled main drive 15 kW (S1)
• Cut-off wheel speed variable 1000 - 2400 rpm
• Cutting force-dependent feed control for material-adaptive cutting
• Automatic reduced-speed approach when starting a new cut
• Dynamic monitoring of cut-off wheel diameter with automatic parameter adjustment

Accessories (examples)

• Recirculation cooling unit (compact, integrable, multi-chamber filtration)
• Belt filter system for continuous/serial operation (tank 285 l, filtering ~100 l/min)
• Centrifugal separator to remove coolant mist and improve air quality

Consumables

• QATM cut-off wheels and consumables designed for reproducible and efficient cutting

Technical specifications

• Cut-off wheel: up to Ø 610 mm / 24"
• Max. wheel insertion into sample: 244 mm (with Ø 610 mm wheel)
• Wheel flange size: Ø 32 / 40 mm
• X-axis (automatic): 550 mm
• Y-axis (automatic): 360 mm
• Z-axis (automatic): 550 mm
• Precision: ±0.1 mm / ±0.1°
• B-axis: 4-axis: 360°; 5-axis: 200°
• C-axis: 4-axis: - ; 5-axis: 360° (optional)
• Table: Ø 600 mm, stainless steel
• T-slot: 12 mm
• Cut-off wheel speed: variable 1000 - 2400 rpm
• Main drive power: 15 kW (S1)
• Connection power: 30 kVA
• Dimensions (W x H x D): 1640 x 2200 x 1480 mm
• Weight: ~1600 kg (depends on equipment)
