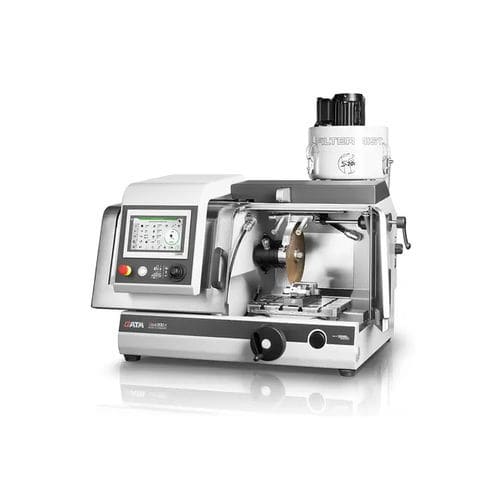

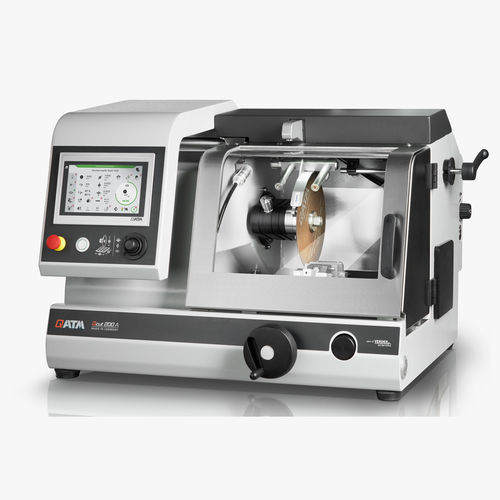

Rotary blade cut-off machine Qcut 200 A

for metalfor glasssample

Introduction
The Qcut 200 A is a compact precision cut-off machine with up to three automatic axes (X, Y, Z) designed for use with cut-off wheels up to Ø 203 mm (8''). It provides a modular, space-efficient design and multiple cutting functions, including travel/chop cut and step cut for optimized layer-by-layer removal.

Product advantages

• Fully automatic precision axes with backlash-free bearings
• New cooling system with approx. 25% higher flow rate than comparable machines, reducing cut-off wheel wear by up to 15%
• Automatic cleaning function for the cutting chamber
• New software functions for grinding applications
• Simplified cut-off wheel change with locking and integrated lubrication option
• Dressing device for sharpening diamond cutting and grinding wheels
• New modular adaptable turning device

Highest demands of safety

• Enabling switch: machine can only be positioned via two-hand control when the door is open
• Risk of crushing for the operator is virtually eliminated

Intelligent component detection

• Proven automatic component detection with new exit detection (auto-stop function)
• Start and end points of cutting are detected automatically, reducing process times

Highest precision thanks to robust design

• Durable, low-vibration and stable construction
• Suitable for cutting or grinding (cup wheel) of delicate samples with maximum precision
• Excellent access to the cutting chamber via large sliding door
• Quick and secure attachment of versatile clamping devices on the large machine table

Intuitive and simple operation

• Large 7" industrial touchscreen with ergonomic user guidance
• User-friendly software with easy operation
• Comfortable movement of automatic axes using joystick

Flow monitoring

• Optional flow monitoring ensures constant cooling of sensitive samples during long cutting processes
• Cutting process is automatically interrupted when a critical threshold is reached

Automatic cleaning function

• Fully automatic machine cleaning via spiral nozzles inside the cutting chamber
• Cleaning can be switched on individually and can start automatically after each cut
• Cleaning can be activated during the running process for a clear view

Extensive cutting programs

• Travel or chop cut to minimize contact area depending on component geometry
• Step cut functions to cut layer by layer and optimize the angle of action, especially for solid material

Wide range of accessories

• Large machine table with grooves and 8 mm T-slots for QATM clamping devices (max. W x H: 300 x 210 mm)
• Clamping devices: wide variety including vacuum clamping unit for fixing glass slides for thin sections
• Optional recirculation cooling systems (portable, mobile or system-lab variants) for cooling, filtration and chip removal
• Accessories expandable with turning device and additional clamping devices

Technical data (table)
Cut-off wheel: up to Ø 203 mm / 8"
Max. cutting capacity: 75 mm (cut-off wheel Ø 200 mm)
Wheel flange size: Ø 12.7 mm
X-axis: 210 mm (manual / automatic)
Y-axis: 80 mm (automatic)
Z-axis (option): 80 mm (automatic)
Feedrate: 0.005–20 mm/s
Precision Z-axis: 0.005 mm
Min. cross feed (Z-axis): 0.001 mm
Table without Z-axis (WxD): 300 x 210 mm
Table with Z-axis (WxD): 280 x 210 mm
T-slot: 8 mm
Speed: 300 - 5000 rpm
Drive power (main drive): 0.75 kW, S1
Connection power: 2.2 kVA
W x H x D: 725 x 535 x 675 mm
Weight: ~ 82 kg

Technical specifications

• Model: Qcut 200 A
• Cut-off wheel diameter support: up to 203 mm (8'')
• Maximum cutting capacity: 75 mm (with Ø 200 mm wheel)
• Wheel flange diameter: 12.7 mm
• Automatic axes: X = 210 mm (manual/automatic), Y = 80 mm (automatic), optional Z = 80 mm (automatic)
• Feedrate range: 0.005–20 mm/s
• Z-axis precision: 0.005 mm; minimum cross feed (Z): 0.001 mm
• Table dimensions: without Z-axis 300 x 210 mm; with Z-axis 280 x 210 mm
• T-slots: 8 mm for clamping devices
• Spindle speed range: 300–5000 rpm
• Main drive power: 0.75 kW (S1)
• Connection power: 2.2 kVA
• Machine dimensions (W x H x D): 725 x 535 x 675 mm
• Approx. weight: 82 kg
