Metal cutting disc QPREP

for stonefor aluminumfor aluminum alloys

Overview

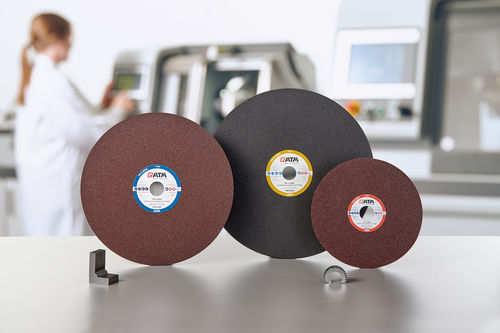

Cut-off wheels for metallographic sample preparation designed to provide reliable, clean cuts across a wide range of materials. Available in premium grades with different abrasive materials and bond types to optimise cutting performance, lifetime and quality of the cut surface.

QPREP Premium Aluminium oxide cut-off wheels

• Bond: resin / rubber
• Coverage: suitable for a wide range of materials from 30 HV to >650 HV
• Long wheel lifetime and low wear
• Premium abrasive particles deliver very fine cutting surfaces, reducing subsequent grinding effort
• The synthetic resin bond allows dull abrasive particles to break out evenly during cutting

Recommended applications

• Cutting of most materials (broad material range including harder ferrous materials)

QPREP Premium Silicon carbide cut-off wheel

• Bond: resin
• Silicon carbide particles (lower hardness than aluminium oxide) optimised for soft and non-ferrous materials
• Optimised cutting performance for non-ferrous and ductile metals
• Long lifetime and low wear

Recommended applications

• QPREP Premium silicon carbide cutting disc NF-A: soft (e.g., copper, aluminium, brass) and medium-hard non-ferrous metals and alloys and hard non-metallic materials (e.g., glass, stone)
• QPREP Premium silicon carbide cutting disc Ti-A: non-ferrous metals, titanium alloys (e.g., Ti6Al4V, Ti5Al2.5Sn) and refractory metals (e.g., molybdenum, tantalum, niobium)

Product advantages (general)

• Wide application range thanks to different abrasive types and bonds
• Long life and low wear reduce running costs
• High-quality abrasive grains produce fine cutting surfaces and shorten subsequent preparation steps
• Bond technologies designed for even break-out of spent grains improving cutting consistency

Technical characteristics / Specifications

• Brand: QATM
• Series / Commercial denomination: QPREP
• Abrasive materials: Aluminium oxide (Al2O3) and Silicon carbide (SiC)
• Bond types: resin; resin / rubber (depending on variant)
• Material hardness range (Al2O3 premium): approx. 30 HV to >650 HV
• Typical target materials: ferrous and non-ferrous metals, titanium alloys, refractory metals, hard non-metallics (glass, stone)
• Key benefits: extended lifetime, low wear, fine cutting surface quality, optimised cutting performance per material group
• Available product variants: Premium Al2O3 (general purpose), Premium SiC (non-ferrous / soft metals / Ti / refractory)
