Introduction

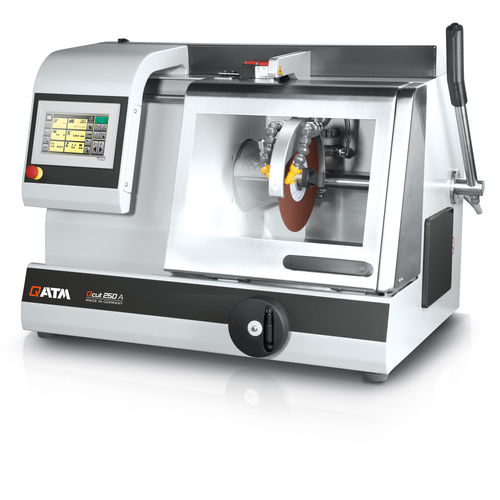

The Qcut 250 A is a compact, flexible semi-automatic abrasive cut-off machine for workpieces and samples up to Ø 95 mm, using a cutting wheel up to 254 mm / 10". It combines manual-cutting speed with automatic abrasive cutting functions.

Product Advantages

• Manual Y-axis with electromechanical lever brake for one-handed operation
• Care-Cut (oscillation) for gentle cutting of sensitive materials
• 7" touch-screen with intuitive QATM user software
• Automatic X-axis travel plus manual hand-wheel operation
• Cutting-force dependent feed control (X-axis)
• High-performance LED illumination of the cutting chamber
• Parallel wheel guard setting increases effective cutting capacity
• Openings on both sides to accommodate long parts

Fine dynamic cut-off
The manual cutting movement is gear-regulated to control cutting force, resulting in jerk-free, precise cuts. The electromechanical lever brake secures the wheel position at any angle.

Horizontal movement
The table supports both manual (hand-wheel) and dynamic automatic traverse. Pulsed cutting mode (dynamic drive) reduces cutting stress and preserves the sample surface.

Intuitive control software
The integrated control software features a clear maintenance menu and configurable cutting parameters to simplify operation and routine servicing.

Automatic cross feed
Optional automatic Z-axis provides 0.1 mm adjustment precision for parallel and serial cuts.

Superiority in detail

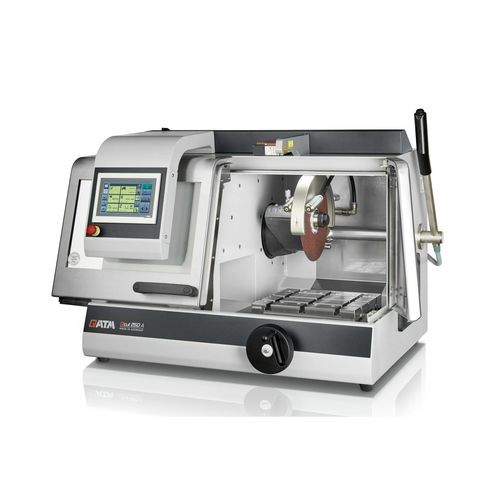

• Large stainless-steel table: backlash‑free axis positioning; T-slots 12 mm; max W x H: 380 x 270 mm (without Z-axis), otherwise 300 x 270 mm
• Ergonomic control panel: 10.1" color touch display and joystick for manual operation
• Laser alignment for accurate part positioning before cutting
• Cut-off wheel lock for simplified disc replacement with an easy nut system
• Side openings for precise positioning of long components
• Robust powder-coated aluminum housing
• Parallel-guided cutting disc cover to increase cross-cutting capacity
• Large hand lever with automatic locking brake for precise cross-cuts

Technical Data

• Cutting wheel: up to 254 mm / 10"
• Maximum cutting capacity: Ø 95 mm
• X-axis travel (automatic & manual): 225 mm
• Y-axis travel (manual): 170 mm
• Optional Z-axis travel: 120 mm, precision 0.1 mm
• Table W x D without Z-axis: 380 x 270 mm; with Z-axis: 300 x 270 mm
• T-slot: 12 mm
• Connection power: 5.5 kVA
• Main drive power: 3 kW (S1); 4 kW (S3/60%)
• Speed: 3015 rpm (50 Hz) / 3100 rpm (60 Hz)
• Machine dimensions W x H x D: 925 x 676 x 756 mm
• Approx. weight: ~130 kg (depending on equipment)
