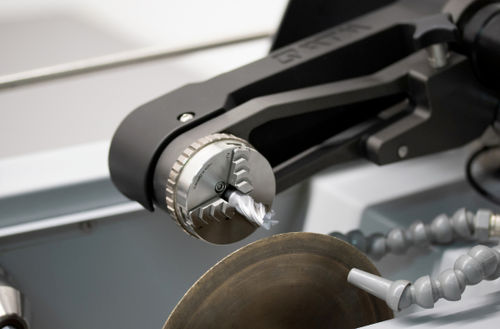

Workpiece clamping chuck
Add to favorites
Compare this product
Characteristics
- Clamping range
Max.: 56 mm
(2.2 in)Min.: 1 mm
(0.04 in)
Description
Available in 3 sizes
Clamping jaws can be used on both sides
Clamping range Ø 32 mm:
- on the inner diameter of the component: 11 - 23 mm
- on the outer diameter of the component: 1 - 32 mm
Clamping range Ø 44 mm:
- on the inner diameter of the component: 13 - 48 mm
- on the outer diameter of the component: 1 - 44 mm
Clamping range Ø 56 mm:
- on the inner diameter of the component: 12 - 56 mm
- on the outer diameter of the component: 1 - 56 mm
