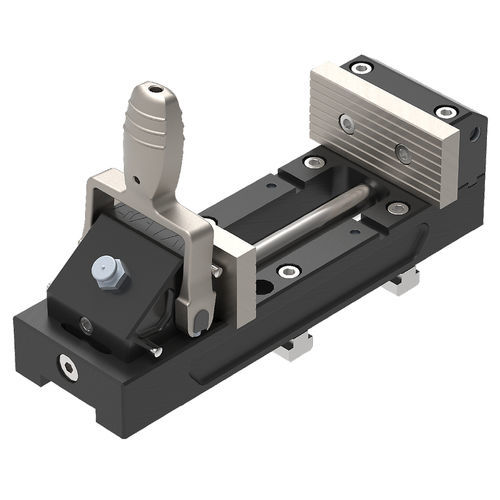

Manual clamping tool Qtool 60 series

workpiecefor cutting machineseccentric

Introduction
The Qtool 60 is a modular clamping device for medium-sized components (up to Ø 60 mm) with a work width of 100 mm. It uses an eccentric clamp for fast, reliable clamping and features an adjustable rear stop (50 mm) for reproducible positioning during cutting. A comprehensive jaw program and optional cross stop increase versatility.

Highlights

• For medium components Ø 60 mm | Work width = 100 mm
• Eccentric clamp for rapid, strong clamping
• Adjustable rear stop (50 mm) for repeatable positioning
• Wide selection of jaws to fit various component geometries
• Optionally expandable with cross stop and additional accessories

Technical data (Qtool 60)
Clamping range: 0–100 mm | Jaw width (standard): 70 mm | Jaw height (standard): 32 mm | Clamping force: approx. 2000 N

Compatibility (mounting options)
Mounting via T-slot nut / spacing or via Easy plate (model dependent). Examples of direct mounting:

• Qcut 200 A: 8 mm / 60 mm
• Qcut 250 A: 12 mm / 75 mm
• Qcut 250 M: 12 mm / 100 mm
• Qcut 350 A: 12 mm / 75 mm
• Brillant 230: 12 mm / 75 mm

Clamping jaws for Qtool 60
The modular jaw program allows tailoring the clamping device to the component shape and cutting task.

Round components

• Prismatic or bevelled jaws provide precise, secure clamping
• Jaw geometry establishes a defined 3-point contact to prevent slipping
• Vertical clamping with cross prism is possible; components can be cut above the clamping device

Large components

• High jaws increase the clamping surface for geometrically large parts

Clamping the cut-off side of the component

• Slotted jaws can clamp the cut-off side to reduce burr formation
• Reduces the need for subsequent burr grinding before embedding

Available jaw types (selection)

• Standard clamping jaw (included): Height 32 mm | Width 70 mm | Scope: 1 spare jaw
• Bevelled clamping jaw: Height 32 mm | Width 70 mm | 5° bevel for pressing down round material | For round components up to Ø 60 mm
• High clamping jaw: Height 60 mm | Width 70 mm | For large components | Scope: 2 jaws
• High slotted jaw: Height 60 mm | Width 100 mm | Sample remains clamped after cutting | Scope: 2 jaws
• Cross prism jaw: Height 32 mm | Width 70 mm | Horizontal/vertical prism (horizontal max Ø 18 mm, vertical max Ø 32 mm) | Scope: 1 jaw
• High slotted with prism: Height 60 mm | Width 100 mm | Horizontal prism max Ø 17 mm | Scope: 2 jaws (1 slotted smooth, 1 slotted with prism)

Workpiece stop
For repetitive cuts the adjustable stop ensures reproducible positioning:

• Mountable on Qtool 60 (also compatible with Qtool 80 / 80 VARIO left or right)
• Stop range up to 120 mm

Precision clamping devices / Accessories
Available accessories increase flexibility: Easy clamping plates (S / M), Easy clamping plate S with rotating function, Easy Adaption Qtool 40-60, Multi-Tower and swivel units for rotating/swivelling functions.

Knowledge Base (related topics)

• Typical methods to sample materials
• Metallographic sectioning techniques
• How to select a suitable cutting wheel

Technical specifications

• Product: Qtool 60 (series)
• Clamping range: 0–100 mm
• Standard jaw width: 70 mm
• Standard jaw height: 32 mm
• Clamping force: approx. 2000 N
• Designed for medium components up to Ø 60 mm
• Adjustable rear stop: 50 mm
• Mounting: Direct via T-slot nut/spacing or via Easy plate (machine dependent)
• Compatible examples: Qcut 200 A, Qcut 250 A, Qcut 250 M, Qcut 350 A, Brillant 230
• Available jaws and accessories: standard, bevelled, high, high slotted, cross prism, high slotted with prism, Easy plates, Easy Adaption Qtool 40-60, Multi-Tower, swivel units
