Rotary blade cut-off machine Qcut 150 A

with digital assistancewith programming softwarewith control software

Overview

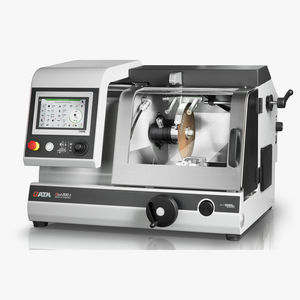

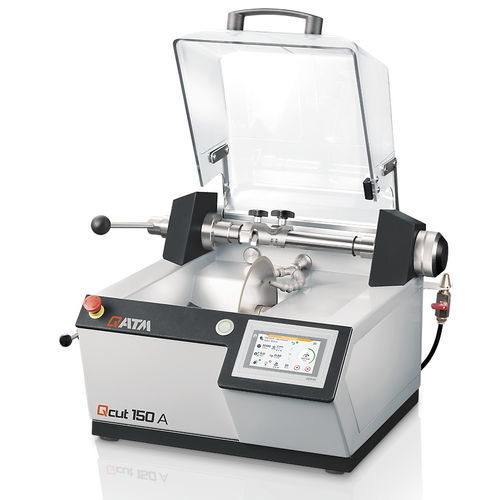

The Qcut 150 A is a compact benchtop precision cut-off machine for cut-off wheels Ø75–203 mm (8"). It performs automatic and manual cuts via an ergonomic lever. An optional sample holder arm with integrated force sensor enables low-deformation cutting with a force-controlled feed rate.

Product Advantages

• Up to 5 operating modes: manual, automatic feed, force-controlled feed, grinding mode, cutting with table attachment (depending on configuration)
• Manual cross feed
• Zone-cutting function for segmented feed control
• Four different cooling systems available
• Dressing device for wheel maintenance
• Intuitive QATM software with integrated database

Force-controlled cutting

• Integrated force sensor in the sample holder arm precisely regulates feed rate according to the set cutting force
• Constant cutting force during the process ensures clean cuts of edge-hardened components and composite materials

Table attachment

• Tool-free mounting of the table attachment
• Quick manual sectioning of large samples, PCBs, or plate materials

Zone-cutting

• Individual adjustment of feed rate or cutting force for specific sections of the sample
• Reduced material deformation and heating
• Accelerated overall cutting process

Grinding mode

• Target preparation: samples can be ground manually or semi-automatically using a cup wheel
• Suitable for thin sections and microelectronics

Vacuum clamping unit

• Glass slides and thin sections can be fixed securely without slipping

Features

• Sample holder arm: Tool-free quick-clamping system with precision clamping devices, rotation device and vacuum clamping unit — Max. sample size: Ø40 mm
• Y-axis: Manual or automatic feed; travel 120 mm; automatic feed rate 0.01–20 mm/s; adjustable cutting force 0–10 N (optional)
• Dressing device: External manual operation for dressing diamond cutting and grinding wheels
• Machine body: Corrosion-resistant stainless steel housing, powder-coated for easier cleaning
• Transparent hood: Swivel hood with free access to cutting chamber; integrated safety switch
• Z-axis: Manual cross feed; travel 25 mm; position shown on display; positioning accuracy 0.005 mm
• Cut-off wheel drive: Wheel size Ø75–203 mm (8"); drive power 0.37 kW (S1)
• Control panel: 4.3" industrial touchscreen; intuitive interface; storage for up to 200 user-defined cutting methods; user account management

All parameters at a glance

• Robust 4.3" industrial touchscreen
• Intuitive software presenting key cutting parameters
• Extensive program storage and user account control

Technical Data
Cut-off wheel: Ø75–203 mm (8")
Variable speed: 150–3000 rpm
Max. cutting capacity (sample diameter): Ø40 mm
Arbour size: Ø12.7 mm
Adjustable cutting force (optional): 0–10 N
Feed (automatic): 0.01–20 mm/s
Y-axis travel: 120 mm (manual/automatic)
Z-axis travel (manual parallel cut): 25 mm; positioning accuracy 0.005 mm
Motor power: 0.37 kW (S1)
Connection power: 0.75 kVA
Dimensions (W x H x D): 545 x 391 x 566 mm
Weight: approx. 45 kg (depending on equipment)

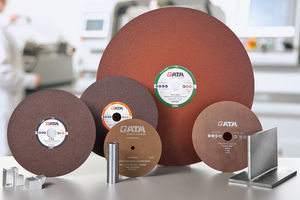

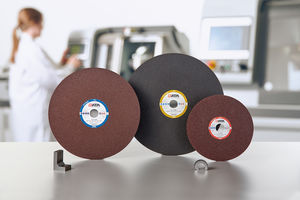

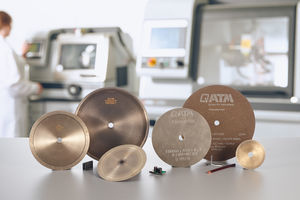

Accessories and Cooling Options

• Wide range of clamping tools for mounted or non-mounted samples up to Ø40 mm
• Cooling systems: 15 L recirculation, 45 L mobile recirculation, 45 L system-lab integration, immersion cooling (wheel immersion)
• Dressing device for wheel sharpening and optional pump module for chamber flushing (with certain cooling systems)
