Rotary blade cut-off machine Qcut 600 A

for metalmanually-controlledwith digital assistance

Introduction

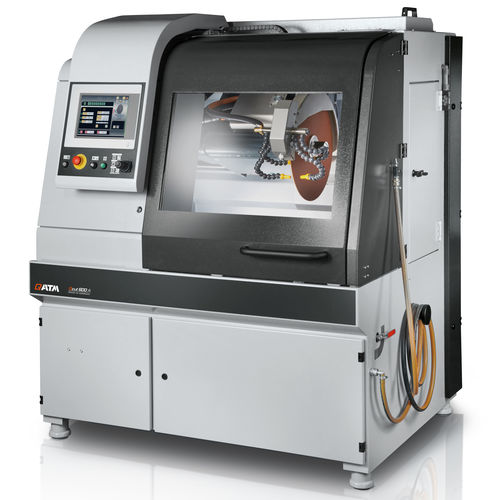

The Qcut 600 A is an industrial wet cut-off machine designed for large and heavy samples. It combines automatic X/Y/Z axis motion with a water-cooled 15 kW main drive to enable precise, low-contact cutting and continuous automated sequences for serial production.

Product advantages

• Cutting capacity: samples up to Ø 244 mm
• Handling of heavy components: machine table supports loading by forklift or crane (see table load specifications)
• Multi-Position Process (MPP): simultaneous positioning and automatic cutting of multiple components on the table

1. Ergonomic control panel

• 12.1" industrial touchscreen with QATM software for program creation and storage
• Joystick for manual axis control and quick setup of automatic cycles
• Sliding control panel for unobstructed access to the working area

2. Robust machine body

• Powder-coated welded steel construction for industrial use
• Integrable recirculating cooling unit and options for central filtration
• Automatic central lubrication of axes

3. Large machine table

• Stainless steel table with integrated longitudinal and cross T-slots (T-slot size: 12 mm)
• Secure clamping of complex workpieces using T-slot fixtures or Easy clamping system
• Table load capacity: up to 400 kg (machine table specification); examples of typical clamping loads available

4. Large cutting chamber

• Wide sliding front door and side swing door for safe access and visibility
• Large side door for straightforward cut-off wheel replacement
• Break-resistant LED interior lighting

5. Optimized swivel arm

• Efficient cooling on the swivel arm for consistent cutting conditions
• Parallel-guided cut-off wheel guard to increase cutting capacity in vertical cuts
• Optional laser alignment aid for fast workpiece positioning
• Water-cooled main drive with 15 kW rated power

Key features

• Precision Z-axis (0.1 mm) and table-integrated Z-axis to maintain cutting height
• Automatic cross feed with serial cutting function for precise parallel cuts
• Optional rotation tool with software-controlled angle input for improved surface quality and reduced cycle time on rotationally symmetric parts
• Adjustable pulsed cutting for difficult materials to improve cooling and cutting results
• Cutting-force dependent feed control: feed rate reduces automatically when a preset cutting force is reached

Accessories (examples)

• Recirculation cooling unit with multi-chamber filtration (compact, integrable)
• Belt filter system for continuous serial operation (tank ≈ 285 l, filtering capacity ≈ 100 l/min)
• Centrifugal separator to remove coolant mist and improve workplace air quality (several exhaust power variants)

Consumables
Cut-off wheels, inlet sieves and filter bags are recommended consumables; QATM supplies cutting consumables matched to the machine.

Technical specifications

• Cut-off wheel: up to Ø 600 mm
• Max. cutting capacity: Ø 244 mm
• Max. wheel penetration into sample: 190 mm (with wheel Ø 500 mm)
• Wheel flange size: Ø 32 / 40 mm
• X-axis automatic travel: 550 mm
• Y-axis automatic travel: 360 mm
• Z-axis automatic travel: 550 mm
• Precision Z-axis: 0.1 mm
• Table W x D: 750 x 600 mm, stainless
• T-slot size: 12 mm
• Cut-off wheel speed: variable 1000 - 2400 rpm
• Main drive power: 15 kW S1 (water-cooled)
• Connection power: 30 kVA
• Overall dimensions W x H x D: 1488 x 1960 x 1477 mm
• Weight: approx. 1600 kg (depends on equipment)
