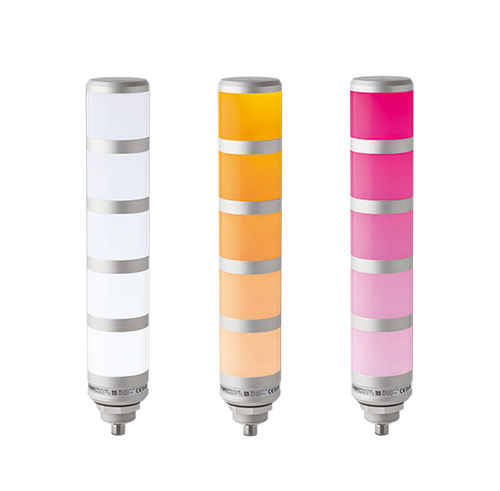

LED stack light QDT50L-IOL8-colorIP65IP20
Add to favorites
Compare this product
Characteristics
- Technology
- LED
- Number of colors
- 8-color
- Protection level
- IP65, IP20
- Options and accessories
- with buzzer
- Other characteristics
- modular, with IO-Link interface
Description
Product Overview
QDT50L-IOL is a Ø50mm multiple color programmable LED tower light equipped with advanced IO-Link technology, designed for high visibility signaling in industrial environments. This state-of-the-art signal tower light is optimized for Industry 4.0 applications, offering plug & play installation and versatile configuration options.
Key Features
General Specifications
Color Options
Model Variants and Weights
Model number | Layers | Voltage | Certificates | Weight | Color
QDT50L-IOL (Standard) | 3 | DC24V | [certified] | 0.27kg | Multi-color
QDT50L-IOL-BZ (Buzzer type) | 3 | DC24V | [certified] | 0.31kg | Multi-color
QDT50L-IOL (Standard) | 5 | DC24V | [certified] | 0.35kg | Multi-color
QDT50L-IOL-BZ (Buzzer type) | 5 | DC24V | [certified] | 0.39kg | Multi-color
Accessories
Certifications
Technical Characteristics / Specifications
QDT50L-IOL is a Ø50mm multiple color programmable LED tower light equipped with advanced IO-Link technology, designed for high visibility signaling in industrial environments. This state-of-the-art signal tower light is optimized for Industry 4.0 applications, offering plug & play installation and versatile configuration options.
Key Features
- State-of-the-art multi colored LED Signal Tower Light with IO-Link technology
- Signaling device optimized for Industry 4.0
- Plug & play technology for immediate operation when mounted on an international standard M12 connector
- 8 types of preset color modes and user-defined settings
- Optional 80dB built-in buzzer available
- Convenient environment setting possible via IO-Link
- Ambient operating temperature: 0°C to +50°C
General Specifications
- Voltage: DC 24V
- Dimension: Diameter Ø51 mm, Height 165-278 mm
- Materials: Housing - Aluminum (Al), Lens - Polycarbonate (PC)
- Protection rating: IP65 (Standard), IP20 (Buzzer type)
- Optional built-in buzzer: 80dB
Color Options
- R-Red
- G-Green
- Y-Yellow
- B-Blue
- W-White
- O-Orange
- P-Pink
- Custom
Model Variants and Weights
Model number | Layers | Voltage | Certificates | Weight | Color
QDT50L-IOL (Standard) | 3 | DC24V | [certified] | 0.27kg | Multi-color
QDT50L-IOL-BZ (Buzzer type) | 3 | DC24V | [certified] | 0.31kg | Multi-color
QDT50L-IOL (Standard) | 5 | DC24V | [certified] | 0.35kg | Multi-color
QDT50L-IOL-BZ (Buzzer type) | 5 | DC24V | [certified] | 0.39kg | Multi-color
Accessories
- QZ30
- QZ302
- R25
- PE35-100
- PE35-400
- LB35
Certifications
- CE
- KC
- RoHS
Technical Characteristics / Specifications
- Voltage: DC 24V
- Diameter: Ø51 mm
- Height: 165-278 mm
- Housing Material: Aluminum
- Lens Material: Polycarbonate
- Protection Rating: IP65 (Standard), IP20 (Buzzer type)
- Operating Temperature: 0°C to +50°C
- Optional Buzzer: 80dB
- Preset Color Modes: 8 types + user-defined
- Plug & Play: M12 connector
- Weight: 0.27kg to 0.39kg depending on model/layers
