Overview

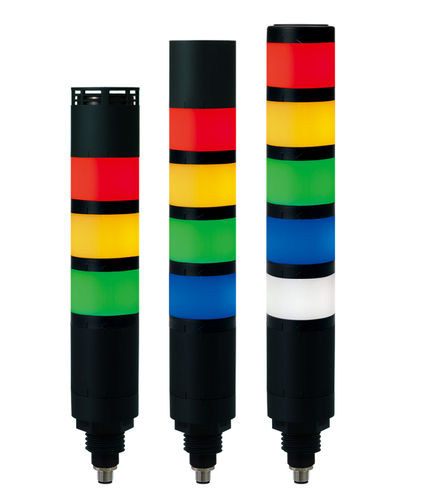

The QTR60L-IOL is a Ø60 mm modular LED tower light with integrated IO-Link communication. It provides programmable steady and flashing light modes and is available with optional built-in high-volume or waterproof buzzers.

Key features

• Modular LED signal tower with lock-type structure enabling tool-free addition and rearrangement of color modules.
• Translucent, color-diffusing lens for comfortable near-range appearance and enhanced long-distance visibility.
• Four operating modes for flexible control:
  • Simple Mode: basic on/off for each light source.
  • Advanced Mode: configurable on/off and strobe timing per light source.
  • Level Mode: percentage-based input control of light output (suitable for process control).
  • Demo Mode: sequential demonstration of functions.
• Seven light output operations supported: On / Slow Blink / Medium Blink / Fast Blink / Strobe 1 / Strobe 2 / Strobe 3.
• Integrated IO-Link (Class A) for Industry 4.0 / smart manufacturing integration.
• Connector: M12-5Pin (Male) Class A for plug & play connectivity.
• Data transmission speed: 38,400 bps (COM2).
• Optional built-in buzzers: high-volume buzzer up to 100 dB @1 m; waterproof buzzer up to 85 dB @1 m.

Technical specifications

• Model: QTR60L-IOL (variants: QTR60L-IOL-HBZ = with high-volume buzzer; QTR60L-IOL-WBZ = with waterproof buzzer).
• Voltage: DC 24 V.
• Dimension: Diameter Ø60 mm; Height range 175–375 mm depending on number of layers.
• Materials: Lens – PC; Housing – ABS.
• Protection rating: IP65 (standard / with waterproof buzzer); Not waterproof with high-volume buzzer (HBZ).
• Approx. weight by layers: 1 layer = 0.25 kg; 2 layers = 0.33 kg; 3 layers = 0.41 kg; 4 layers = 0.49 kg; 5 layers = 0.57 kg.
• Available light module colors per layer: R = Red; A = Amber; G = Green; B = Blue; W = White (simultaneous use of white module with HBZ or WBZ is NOT supported).
• Current (per 1 layer, DC24V): light source = 70 mA; high-volume buzzer = 90 mA; waterproof buzzer = 90 mA.
• Operating temperature range: -30 ℃ ~ +50 ℃.
• Certifications / Compliance: RoHS2 (see product page for additional certificates).

Integration and documentation

• IO-Link Class A enables parameterization and monitoring via standard IO-Link masters. Use the M12-5Pin connector for plug & play installation.
• For detailed dimensions, 3D STEP/CAD files, manuals and IODD files, consult the product download resources.
