LED stack light QTR70L-IOL
flashingsteady2-color

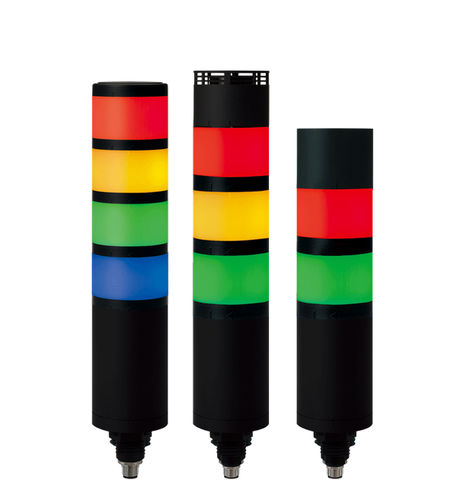

LED stack light - QTR70L-IOL - Qlight Co., Ltd. - flashing / steady / 2-color
LED stack light - QTR70L-IOL - Qlight Co., Ltd. - flashing / steady / 2-color
Add to favorites
Compare this product
Go to the Qlight Co., Ltd. website for more information

Characteristics

Technology
LED
Type
flashing, steady
Number of colors
3-color, 4-color, 2-color, 5-color
Protection level
IP65, waterproof
Options and accessories
with buzzer, with audio signal
Other characteristics
modular, with IO-Link interface

Description

Modular IO-Link programmable Ø70 mm LED signal tower light designed for high visibility and flexible signaling in smart manufacturing environments.

Product Features
  • Modular LED steady/flashing signal tower light with lock-type structure for tool-free module addition and color rearrangement.
  • Soft, diffuse light emitted through a translucent PC lens with color-diffusing design for enhanced visibility at a distance.
  • Supports Four Operating Modes via IO-Link: Simple Mode (basic on/off), Advanced Mode (on/off and strobe timing configuration), Level Mode (percentage-based output control), Demo Mode (sequential function demonstration).
  • Seven light-source operations: On / Slow Blink / Medium Blink / Fast Blink / Strobe 1 / Strobe 2 / Strobe 3.
  • Integrated IO-Link (COM2) for Industry 4.0 connectivity and Plug & Play via M12 connector.
  • Connector: M12-5Pin (Male) - Class A; Data transmission speed: 38,400 bps (COM2).
  • Buzzer options: High-volume buzzer (Max. 100 dB at 1 m) and Waterproof buzzer (Max. 85 dB at 1 m).


Technical specifications
  • Model: QTR70L-IOL (variations: QTR70L-IOL-HBZ = steady/flashing with built-in high-volume buzzer; QTR70L-IOL-WBZ = steady/flashing with built-in waterproof buzzer).
  • Voltage: DC 24 V.
  • Dimensions: Diameter Ø70 mm │ Height: 175–375 mm (depending on number of layers).
  • Materials: Housing - ABS │ Lens - PC.
  • Protection rating: IP65 (standard / waterproof buzzer models); non-waterproof for models with high-volume buzzer.
  • Weights by number of layers: 1 layer = 0.37 kg; 2 layers = 0.52 kg; 3 layers = 0.67 kg; 4 layers = 0.82 kg; 5 layers = 0.97 kg.
  • Available color modules by layer count: 1-layer: R (Red); 2-layer: R (Red), G (Green); 3-layer: R, A (Amber), G; 4-layer: R, A, G, B (Blue); 5-layer: R, A, G, B, W (White).
  • Note: Simultaneous use of the white LED module with the high-volume buzzer (HBZ) or waterproof buzzer (WBZ) is not supported.
  • Light source / buzzer current (per 1 layer, DC 24 V): Light source = 70 mA; High-volume buzzer = 90 mA; Waterproof buzzer = 90 mA.
  • Acoustic output: High-volume buzzer up to 100 dB (at 1 m); Waterproof buzzer up to 85 dB (at 1 m).
  • Connector / communication: M12-5Pin (Male) Class A; IO-Link enabled (COM2, 38,400 bps).
  • Certificates / Compliance: RoHS2 (additional certifications indicated on product page).
