LED stack light QTC70L-IOL

flashingstroboscopicblinking

Overview

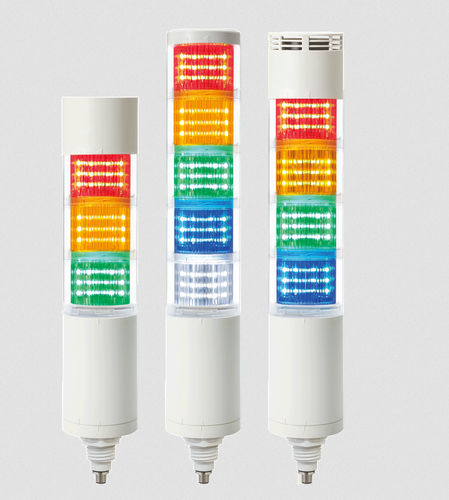

The QTC70L-IOL is a Ø70 mm IO-Link programmable LED tower light for industrial signaling. It features a modular, lock-type assembly for tool-free addition and removal of modules, optional built-in high-volume (Max.100 dB at 1 m) or waterproof (Max.85 dB at 1 m) buzzer variants, and IO-Link V1.1 connectivity for plug & play integration in smart manufacturing (Industry 4.0) systems.

Key product features

• Modular LED steady/flashing signal tower with lock-type structure for tool-free module changes.
• Separate color filter lens located inside the outer lens for clear signaling; translucent filter for comfortable viewing when off.
• Four operating modes for environmental adaptability:
  • Simple Mode: basic on/off control of individual light sources.
  • Advanced Mode: configure on/off and strobe timing for each light source.
  • Level Mode: percentage-based input to control light output for process operations.
  • Demo Mode: sequential demonstration of functions.
• Seven light source operations available: On, Slow Blink, Medium Blink, Fast Blink, Strobe 1, Strobe 2, Strobe 3.
• Integrated IO-Link technology (Version 1.1) with data transmission at 38,400 bps (COM2); Connector: M12-5Pin (Male) - Class A for standardized plug & play.
• Optional buzzer variants: High-volume buzzer (Max.100 dB at 1 m) and Waterproof buzzer (Max.85 dB at 1 m).

Technical specifications

• Model: QTC70L-IOL (variants: QTC70L-IOL, QTC70L-IOL-HBZ = with built-in high-volume buzzer, QTC70L-IOL-WBZ = with built-in waterproof buzzer).
• Voltage: DC 24V.
• IO-Link: Version 1.1; data transmission speed: 38,400 bps (COM2); Connector: M12-5Pin (Male) - Class A.
• Dimensions: Diameter Ø70 mm; Height: 175–375 mm (depending on number of layers/assembly).
• Materials: Filter lens - PC; Lens - PC; Housing - ABS.
• Protection rating: IP65 (standard / Waterproof buzzer variant); High-volume buzzer variant is non-waterproof.
• Buzzer current and light source current (based on 1 layer, DC24V): Light source current = 70 mA; High-volume buzzer current = 90 mA; Waterproof buzzer current = 90 mA.
• Layers / Weight / Available colors:
  • 1 layer — Weight: 0.25 kg — Color options: R (Red)
  • 2 layers — Weight: 0.33 kg — Color options: R (Red), G (Green)
  • 3 layers — Weight: 0.41 kg — Color options: R (Red), A (Amber), G (Green)
  • 4 layers — Weight: 0.49 kg — Color options: R (Red), A (Amber), G (Green), B (Blue)
  • 5 layers — Weight: 0.57 kg — Color options: R (Red), A (Amber), G (Green), B (Blue), W (White)
• Note: Simultaneous use of the white LED module with high-volume buzzer (HBZ) or waterproof buzzer (WBZ) is not supported.
• Certificates: Manufacturer certificates available in product downloads; images shown on product page.
• Mounting / Integration: Designed for modular assembly and system integration via IO-Link M12 connector for plug & play implementation.
