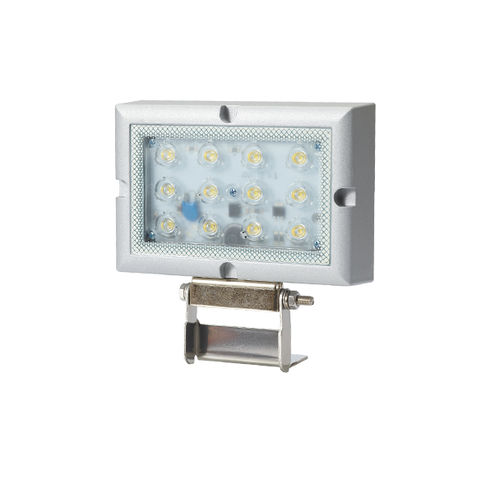

LED floodlight QMHL-150-K

dust-proofoil-resistantIP67

Product Overview

• Water-, dust- and oilproof LED work light designed for machine tool and enclosure applications with cutting fluids
• Sealed construction with IP67 rating and suitability for high-pressure, high-temperature washdown (IP69K)
• Tempered flat glass with bonded assembly to resist damage from chips and prevent foreign substance adhesion
• Available in QMHL (high luminance) and QML (anti-glare) variants to match task requirements
• Multiple mounting brackets (direct, tilt, pan/tilt) and connector options (wired end, M12) with customized oil‑resistant cable available

Optical specifications
Model number: QMHL-150-K
Light distribution: Translucent
Light color: Cool daylight
Color temperature: 6,000–7,000 K
Luminous flux: 900 lm
Illumination (at 1 m): 1,100 Lux


Electrical & Mechanical specifications
Model number: QMHL-150-K
Rated voltage: DC 24 V (operating range DC 21.5 V–26.5 V)
Power consumption: 15 W
Insulation resistance: Min. 100 MΩ (measured at 500 V DC)
Withstanding voltage: DC 500 VAC, 60 Hz, 1 minute
Operating temperature: -30 °C to +60 °C
Protection rating: IP67 / IP69K
Materials: Housing – Aluminum; Lens – Tempered glass; Bracket – K Type: STS430 / MF Type: Aluminum
Dimensions: 155 (W) × 156 (L) × 51 (H) mm
Weight (approx.): 0.99 kg
Certifications: CE (UL listing applicable to QML series only)


Applications & mounting

• Machine tools and control enclosures exposed to cutting fluids and chips
• Environments requiring high‑pressure cleaning or washdown
• Mounting options for precise positioning: direct mount, tilt mount, pan/tilt mount
• Choice of light variant (QMHL/QML) to optimize illumination for assembly, inspection or machining tasks

Ordering & customization

• Connector options: wired end or M12 connector (M12 can be pre-attached at wire end)
• Customized oil‑resistant cable and specific bracket assemblies available on request
• Contact sales with required bracket type, connector and cable specifications for a tailored configuration
