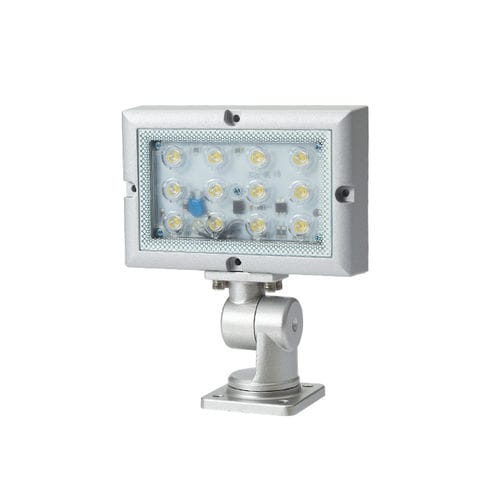

LED floodlight QMHL-150-MF

oil-resistantwater-resistantwaterproof

Product overview
Water-, vibration- and oil-resistant LED work light for machine tool applications. IP67/IP69K protection; high-luminance type suitable for machining environments.

Key features

• Special sealing structure providing IP67 oil resistance, suitable for machine tools using cutting fluids
• Rated IP69K for high-pressure, high-temperature washdown environments
• Tempered glass lens resists damage from machining chips
• Flat bonded glass design prevents external deposits on the glass with long-term use
• Selectable types: QML (anti-glare) and QMHL (high luminance)
• Multiple bracket options: direct mount, tilt mount, and pan/tilt mount to suit installation and lighting needs
• Wired version and M12 connector option; M12 connector can be fitted to wire end for customization
• Custom oil-resistant cable-attached versions available

Optics Specifications
Model: QMHL-150-MF
Direction: Translucent
Light color: Cool daylight
Color temperature: 6,000–7,000 K
Luminous flux: 900 lm
Illuminance (1 m): 1,100 Lux

Specifications

• Model: QMHL-150-MF
• Supply: DC24V (operating range DC21.5–26.5V)
• Power consumption: 15 W
• Insulation resistance: Min. 100 MΩ (500 V DC megohmmeter)
• Withstanding voltage: 500 VAC, 60 Hz, 1 min
• Operating temperature: -30°C to +60°C
• Protection rating: IP67 / IP69K
• Materials: Housing – Aluminum; Lens – Tempered glass; Bracket – K type STS430 / MF type Aluminum
• Weight (approx.): 1.11 kg
• Certification: CE / UL (as applicable)
