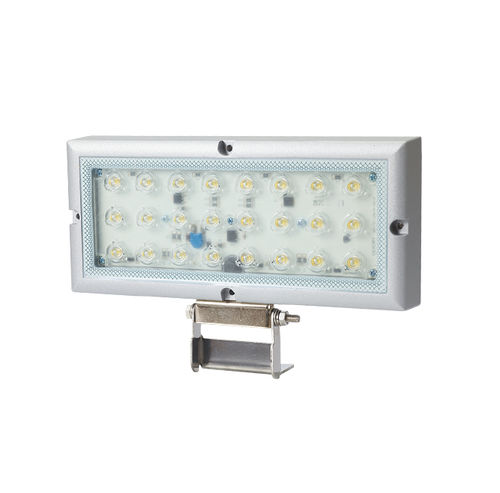

LED floodlight QMHL-250-K

oil-resistantwater-resistantwaterproof

Product overview
Water-, vibration- and oil-resistant LED work light designed for machine tool and industrial environments. IP67/IP69K protection, high-luminance LEDs with focusing lens and tempered glass for chip- and fluid-resistant operation.

Key features

• Special sealing structure providing oil resistance and IP67 protection suitable for use with cutting fluids
• Rated IP69K for high-pressure, high-temperature water cleaning
• Tempered glass lens resists damage from machining chips
• Flat glass bonding structure prevents foreign material adherence over long-term use
• Available in QML (anti-glare) and QMHL (high-luminance) variants
• Multiple mounting brackets: direct mount, tilt mount, pan/tilt mount to fit installation needs
• Wired version and M12 connector option; customizable with M12 fitted on cable end
• Custom oil-resistant cable-attached models available

Technical specifications

• Model: QMHL-250-K
• Illumination (at 1m): 2,500Lux
• Luminous flux: 1,800 lm
• Color temperature: 6,000–7,000K (cool daylight)
• Voltage: DC24V (operating range DC21.5V–26.5V)
• Power consumption: 25W
• Dimensions: 255(W) × 166(L) × 51(H) mm
• Operating temperature: -30°C to +60°C
• Protection rating: IP67 / IP69K
• Materials: Housing – Aluminum; Lens – Tempered glass; Bracket – K Type: STS430 / MF Type: Aluminum
• Insulation resistance: Min. 100 MΩ (500V DC)
• Withstanding voltage: 500VAC, 60Hz, 1 minute
• Approx. weight: 1.39 kg
• Certification: CE; UL Listed (QML series only)

Optical data
Model number: QMHL-250-K
Beam type: Translucent/focused
Light color: Cool daylight
Color temperature: 6,000–7,000K
Luminous flux: 1,800 lm
Illumination (at 1m): 2,500Lux

Ordering & mounting options

• Bracket options: direct mount, tilt mount, pan/tilt mount to suit application
• Connection options: fixed wired type or M12 connector type; M12 can be fitted to cable end
• Custom models: oil-resistant cable-attached variants available on request
