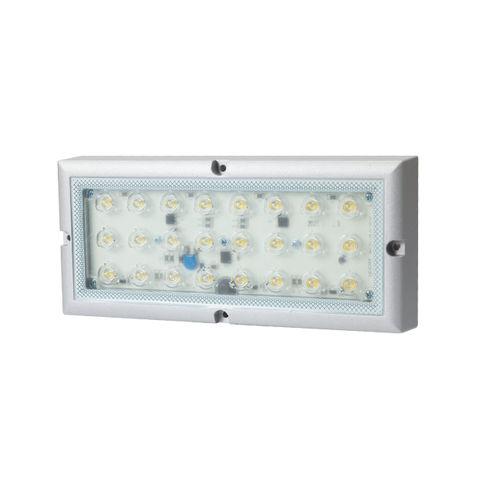

LED floodlight QMHL-250-D

oil-resistantwater-resistantwaterproof

Product overview
Water-, vibration- and oil-resistant LED work light designed for machine tool environments. Delivers high luminance with tempered flat glass and a special sealing structure to withstand cutting fluids, chips and high-pressure cleaning (IP67 / IP69K).

Key features

• Oil-resistant sealing suitable for use with cutting fluids
• IP69K rating for high-pressure, high-temperature water cleaning
• Tempered flat glass resists damage from metal chips
• No external deposits on glass during long-term operation
• Two optical variants: QML (anti-glare) and QMHL (high luminance)
• Multiple mounting brackets: direct, tilt and pan/tilt
• Wired and M12 connector options; M12 can be attached at wire end
• Custom oil-resistant cable and connector assemblies available

Optical specifications

• Model: QMHL-250-D
• Light distribution: Translucent
• Color: Cool daylight
• Color temperature: 6,000–7,000 K
• Luminous flux: 1,800 lm
• Illuminance at 1 m: 2,500 lux

Electrical / Mechanical specifications

• Supply voltage: DC 24 V (operating range DC 21.5–26.5 V)
• Power consumption: 25 W
• Insulation resistance: ≥100 MΩ (measured at 500 V DC)
• Withstanding voltage: 500 VAC, 60 Hz, 1 min
• Operating temperature: -30 °C to +60 °C
• Protection: IP67 / IP69K
• Materials: Housing – Aluminum; Lens – Tempered glass; Bracket – K type STS430 / MF type Aluminum
• Dimensions: 255 (W) × 115 (L) × 36 (H) mm
• Weight: approx. 1.32 kg

Applications and options

• Designed for machine tools and industrial equipment exposed to oil, coolant and chips
• Selectable QML or QMHL series depending on glare and luminance requirements
• Bracket and connector customizations available for integration
• Note: UL listing applies to QML series only
