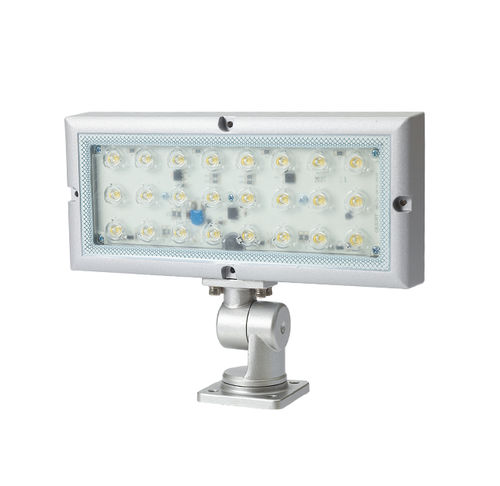

LED floodlight QMHL-250-MF

waterproofoil-resistantwear-resistant

Product overview
Water-, vibration- and oil-resistant LED work light designed for machine tool applications requiring high waterproofing and oil resistance. High-luminance LEDs with focusing lens, special sealing structure and tempered glass provide reliable illumination in harsh wet, oily and chip-prone environments. Available with multiple bracket and connector options.

Key features

• Special sealing structure and IP67 protection for excellent oil resistance suitable for use with cutting fluids
• IP69K rating for resistance to high-pressure, high-temperature water cleaning
• Tempered glass resists damage from machine tool chips
• Flat glass bonding prevents external contamination on the glass surface over long-term use
• Two optical variants: QML (anti-glare) and QMHL (high luminance) to match work conditions
• Multiple mounting options: direct mount, tilt mount, pan/tilt mount
• Wired and M12 connector versions; M12 connector can be attached to cable end for customization
• Custom oil-resistant cable option available

Optics specifications
Model: QMHL-250-MF
Direction: Translucent
Light color: Cool daylight
Color temperature: 6,000–7,000 K
Luminous flux: 1,800 lm
Illumination (at 1 m): 2,500 Lux

Specifications
Model: QMHL-250-MF
Voltage: DC24V
Operating voltage range: DC21.5V–26.5V
Power consumption: 25 W
Insulation resistance: Min. 100 MΩ (measured with 500 V DC megohm meter)
Withstanding voltage: 500 VAC, 60 Hz, 1 minute
Operating temperature: -30℃ to +60℃
Protection rating: IP67 / IP69K
Materials: Housing – Aluminum; Lens – Tempered glass; Bracket – K Type: STS430 / MF Type: Aluminum
Weight (approx.): 1.60 kg
Certification: UL listed for QML series (indicated); certification icons shown on product page

Technical specifications

• Model: QMHL-250-MF
• Voltage: DC 24V
• Operating voltage range: DC 21.5V – 26.5V
• Power consumption: 25 W
• Luminous flux: 1,800 lm
• Illumination (at 1 m): 2,500 Lux
• Light color: Cool daylight (6,000–7,000 K)
• Dimensions: 255 (W) × 201 (L) × 66 (H) mm
• Materials: Housing – Aluminum; Lens – Tempered glass; Bracket – K Type (STS430) / MF Type (Aluminum)
• Protection rating: IP67 / IP69K
• Operating temperature: -30℃ to +60℃
• Insulation resistance: Min. 100 MΩ (measured with 500 V DC megohm meter)
• Withstanding voltage: 500 VAC, 60 Hz, 1 minute
• Approx. weight: 1.60 kg
• Bracket & mounting: Direct mount, tilt mount, pan/tilt mount options available; custom oil-resistant cable or M12 connector options available
