Flexible coupling BK2 seriesbellowstorquealuminum
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Other characteristics
- torque, aluminum
- Torque
Max.: 10,000 Nm
(7,375.6215 ft.lb)Min.: 15 Nm
(11.0634 ft.lb)
Description

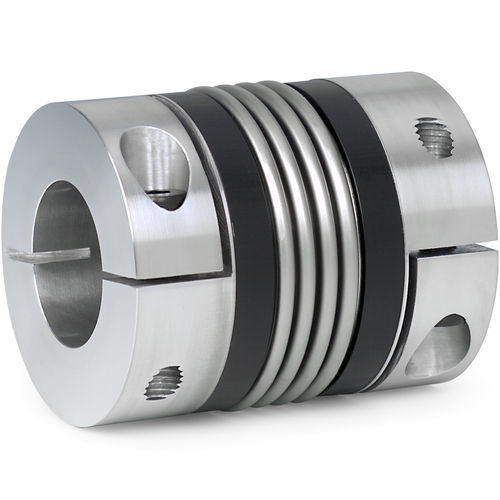

Bellows coupling with clamping hub
Features
Easy to mount
Optional: bolt tensioning system in size 800 and up
Light weight and low moment of inertia
Temperature range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two clamping hubs concentrically mounted to flexible bellows
Brief overloads of up to 1.5x the rated torque are acceptable
Material
Bellows: high grade stainless steel
Hubs:
up to series 80 – aluminum, optionally steel
from series 150 – steel
