Bellows coupling BKH seriestorquealuminum
Add to favorites
Compare this product
Characteristics
- Type
- bellows
- Other characteristics
- torque, aluminum
- Torque
Max.: 4,000 Nm
(2,950.2486 ft.lb)Min.: 15 Nm
(11.0634 ft.lb)
Description

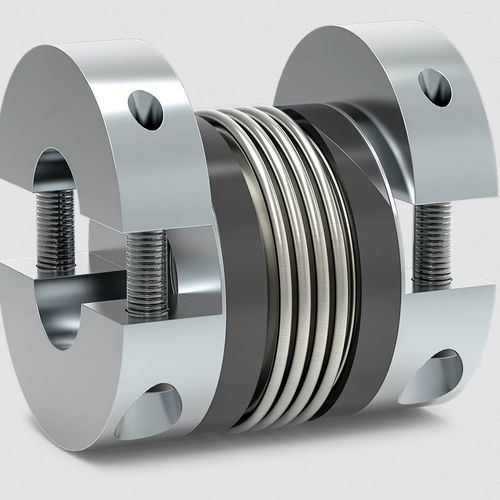

Bellows coupling with split clamping hub
Features
Radial mounting possible
Easy installation onto pre-aligned shafts
low moment of inertia
Temperature range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two fully split clamping hubs, with two screws in each
Clamping halves radially removable in one direction
Brief overloads of up to 1.5x the rated torque are acceptable
Material
Bellows: high grade stainless steel
Hubs:
up to series 80 – aluminum, optionally steel
from series 150 – steel
