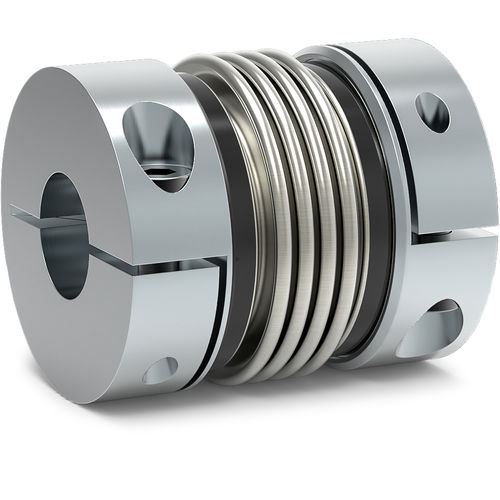

Flexible coupling BKL seriesbellowstorquealuminum
Add to favorites
Compare this product
Characteristics
- Type
- flexible, bellows
- Other characteristics
- torque, aluminum
- Torque
Max.: 500 Nm
(368.7811 ft.lb)Min.: 2 Nm
(1.4751 ft.lb)
Description
Economy bellows coupling with clamping hub
Features
Easy to mount
Light weight and low moment of inertia
Temperatur range
-30 °C to +100 °C (-22 °F to +212 °F)
Design
Two clamping hubs concentrically mounted to flexible bellows.
Brief overloads of up to 1.5x the rated torque are acceptable.
Material
Bellows: high grade stainless steel
Naben:
up to series 80 – aluminum, optionally steel
from series 150 – steel
Catalogs
No catalogs are available for this product.
See all of R+W Italia S.r.l‘s catalogs
