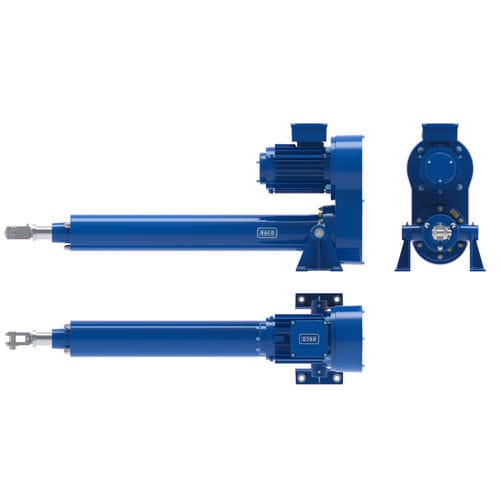

Electric cylinder 1C5 - 148 series
precisionheavy-dutypositioning

electric cylinder
electric cylinder
electric cylinder
electric cylinder
electric cylinder
electric cylinder
electric cylinder
Add to favorites
Compare this product

Characteristics

Type
electric
Other characteristics
precision, heavy-duty, positioning, for medical applications, handling, food, explosion-proof
Stroke

Min.: 100 mm (3.937 in)

Max.: 1,000 mm (39.37 in)

Force

5 kN, 10 kN

Speed

Min.: 50 mm/s

Max.: 120 mm/s

Description

RACO Heavy duty electric actuators: Unconditionally precise! The heavy duty electric actuators of this production series are built to impress even under toughest conditions. Whether there is intense heat or cold, dust, moisture, or shocks and vibrations, the accuracy in positioning and reproducibility remains. Because of the extremely robust design, which is achieved with high-grade materials, the RACO heavy duty electric actuators have a very long life cycle. We are building them for immensely dynamic processes with high switching frequencies. All-rounder: Reliable service, from bulk materials handling to medical technology With these characteristics, our products are successful in many different industries. They meet the requirements for explosion and firedamp protection of the chemical industry and the mining sector. The same is true for standards of purity and environmental protection that are effective in the food and luxury food industry. In the manufacture of its goods, RACO puts great emphasis on hi-precision production processes. Shock resistance is achieved by integrating an attenuation of the spindle nut system. We also integrate a rotation lock for the push/pull unit. The application as a whole is completely closed, but we optionally offer special sealing for enhanced corrosion protection if needed.
