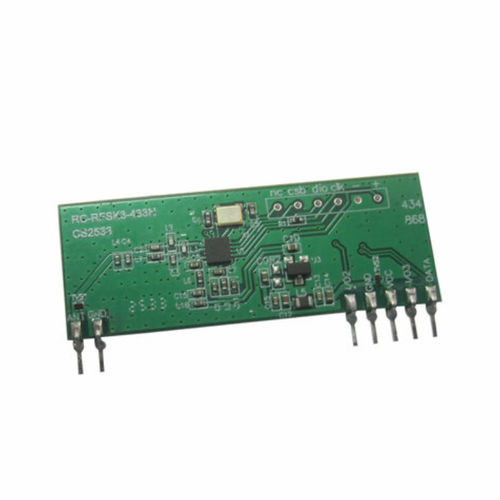

FSK receiver module RC-RFSK3-433N

wirelessradio433 MHz

FSK Radio receiver Module with PLL synthesizer and crystal oscillator, single line package. - 4.8Kbit/s Version. - Also available: 9.6Kbit/s version (RC-RFSK3-433N-96). Technical Characteristics: - Supply Voltage: 4.5 - 5.5 Volt - Current Consumption (RX Mode): 5.7 - 6.8 mA - Current Consumption Shut Down Mode: Max 100 nA - Frequency: 433.92 MHz - RF Sensitivity: -112 dBm - Max Data Rate: 4.8/9.6 kbit/s - RF Bandwidth 3dB: ±150 KHz - Level of emitted spectrum: Max -70 dBm - Power Up Time from Power to stable data: Max 8 msec - Power Up Time from PD to stable data: Max 5 msec - Operating Temperature Range: -20 to 80 °C Pinout: - Pin 1: ANT - Antenna - Pin 2: GND - Ground - Pin 14: NU - Not Used - Pin 15: GND - Ground - Pin 16: VCC - Power Supply - Pin 17: NU - Not Used - Pin 18: OUT - Data Out - FSK Radio receiver Module with PLL synthesizer and crystal oscillator - Single line package - 4.8Kbit/s and 9.6Kbit/s versions available - High sensitivity: -112 dBm - Low current consumption: 5.7-6.8 mA (RX mode) - Wide operating temperature: -20°C to 80°C
